Key Takeaways
- The top picks balance power capacity with programmability, catering to different levels of testing complexity.
- More advanced features like USB control and TFT displays significantly increase usability but also add to the price.
- Versatility in modes (CC, CV, CR, CP) remains a key factor for prototyping applications requiring dynamic testing.
- Build quality and interface responsiveness differentiate premium models from budget options.
- Choosing the right electronic load tester depends heavily on the specific voltage, current, and control needs of your projects.
| top rated electronic load tester for electronics prototyping | Power | Display | Voltage Range | Current Range |
|---|---|---|---|---|
| Eyes.sys Electronic Load Teste | 180W | 2.4” HD color screen | — | — |
| Rigol DL3031A Programmable DC | 350W | 4.3-inch TFT LCD | — | — |
| MakerHawk Electronic Load Test | — | — | 0-200V | 0-20A |
| 150W 20A Adjustable Constant C | — | 2.4-inch TFT color screen | — | — |
| ET5406A+ Electronic Load Teste | 200W | — | 0-120V | 0-20A |
| DROK USB Load Tester | 25W | 4-bit LED | Up to 30V | 0.25A-4A |
| Rigol DL3021 Programmable DC E | 200W | 4.3-inch TFT LCD | — | — |
| MakerHawk Battery Load Tester | 180W | 2.4-inch color screen | — | — |
| East Tester ET5406A+ DC Electr | 200W | — | — | — |
| OWON Programmable DC Electroni | 150W | 2.8-inch TFT color LCD | 0-150V | 0-15A |
| Programmable DC Electronic Loa | 120W | — | 0-150V | 0-20A |
| ET5410A+ Electronic Load Teste | 400W | 2.8-inch TFT LCD | 0-150V | 0-40A |
More Details on Our Top Picks
Eyes.sys Electronic Load Tester, USB Load Tester, 180W 200V 20A Battery Capacity Tester with 4 Modes
This model excels in testing batteries and charging cables through its four operation modes—constant current, voltage, power, and resistance—making it highly adaptable for prototyping needs that require comprehensive performance analysis. Its large 2.4-inch HD color display ensures clear monitoring, and dual temperature measurement adds safety and precision. Compared with the Rigol DL3031A, this tester offers more flexible wiring options but doesn’t match Rigol’s high-frequency capabilities or communication interfaces. The setup can be complex, especially for those unfamiliar with electrical testing, and it’s limited to 180W, which might restrict testing high-capacity batteries. Overall, this pick is ideal for hobbyists or engineers who need detailed battery diagnostics with flexible configurations, despite its steeper learning curve and power constraints.
Pros:- Multiple testing modes for versatile analysis
- Large HD color display for easy readings
- Dual temperature sensors for safety and accuracy
- Supports DIY wiring extensions
Cons:- Setup can be technically challenging
- Limited to 180W power and 200V voltage
Best for: Prototyping engineers and advanced hobbyists needing comprehensive battery and cable testing
Not ideal for: Beginners or users requiring higher power capacity testing without complex setup
- Power:180W
- Voltage:200V
- Current:20A
- Modes:4 (constant current, voltage, power, resistance)
- Display:2.4” HD color screen
- Safety Protections:3 intelligent safety protections
- Temperature Measurement:Dual with external wired NTC thermometer
Our verdict“This tester suits experienced users who need detailed, multi-mode battery and cable testing with flexible wiring options.”
Rigol DL3031A Programmable DC Electronic Load, 150V/60A, 350W, 30kHz
The Rigol DL3031A is well-suited for detailed testing of high-capacity power supplies and batteries, thanks to its high-resolution TFT display that shows multiple parameters simultaneously. Its 30kHz frequency makes it ideal for dynamic testing scenarios, outperforming basic models like the MakerHawk in speed and versatility. However, it is limited to single-channel operation, which may restrict testing multiple devices concurrently. Its complex interface demands a learning curve, and there’s little information about included accessories or calibration, which could impact setup time. This unit is best for professionals or advanced technicians who need precise, high-frequency measurements and extensive protection features, though it sacrifices multi-channel flexibility for high accuracy.
Pros:- High-resolution TFT display with detailed parameters
- Multiple static and dynamic modes for flexible testing
- Protection features including overvoltage and overcurrent
- Communication interfaces (RS232, USB, LAN) for remote control
Cons:- Single-channel operation limits testing scope
- Steep learning curve for complex interface
- Lack of detail on calibration and accessories
Best for: Electronics professionals conducting detailed, high-speed testing of power modules and batteries
Not ideal for: Hobbyists seeking simple, multi-channel testing solutions or users on a tight budget
- Voltage:150V
- Current:60A
- Power:350W
- Frequency:30kHz
- Display:4.3-inch TFT LCD
- Protection Features:Overvoltage, overcurrent, overpower, overtemperature, reverse voltage
Our verdict“This load offers precise, high-frequency testing for professionals who require detailed measurement and remote control capabilities.”
MakerHawk Electronic Load Tester – USB Load Tester 150W 200V 20A Resistor Adjustable Constant Current Battery Capacity Tester Module
This compact, battery-powered load tester is designed for quick, adjustable testing of batteries and power supplies, making it ideal for prototyping where portability and affordability matter. Its adjustable current and voltage provide flexibility, but operating safely requires careful attention, especially since it’s limited to 150W, which can restrict testing larger batteries or power sources. Compared to the ET5406A+, it’s more lightweight and easier to carry but lacks the advanced protection features and higher power capacity. Its simple, small form factor makes it suitable for field testing or small-scale projects, though users must be cautious with operation and handle the complex instructions carefully.
Pros:- Adjustable current and voltage for detailed testing
- Supports multiple power supply options
- Lightweight and portable design
- Easy to connect for quick testing
Cons:- Limited to 150W power capacity
- Requires careful operation to prevent burnout
- Complex instructions may challenge beginners
Best for: Battery developers and hobbyists who need a portable, adjustable load tester for small-scale applications
Not ideal for: Prototypers working with high-power systems or those needing extensive protection features
- Power Source:Battery powered
- Voltage Range:0-200V
- Current Range:0-20A
- Discharge Power:150W
- Weight:83g
- Dimensions:3.31 x 1.61 x 1.1 inches
Our verdict“This tester is best for portable, small-scale battery testing but isn’t suitable for high-power or advanced safety testing scenarios.”
150W 20A Adjustable Constant Current Electronic Load with TFT Display and Battery Capacity Monitor
This model offers four working modes—constant current, voltage, power, and resistance—making it a flexible choice for diverse prototyping tasks. The 2.4-inch TFT display simplifies parameter monitoring, and features like discharge stop voltage and external NTC temperature monitoring add useful safety layers. Compared with the Eyes.sys unit, it provides a more straightforward, easy-to-read interface but doesn’t match the dual temperature measurement or safety protections. Its 150W limit makes it less suitable for high-capacity testing, yet it remains a solid option for users who prioritize versatility and ease of use in small to medium power applications. Setup can be somewhat complex for newcomers.
Pros:- Four working modes for flexible testing
- Clear TFT color display for easy parameter viewing
- Battery capacity testing features
- Protection features like overvoltage and overcurrent
Cons:- Setup may be complex for beginners
- Limited to 150W power capacity
- No detailed info on external power supplies
Best for: Prototyping engineers needing versatile, multi-mode testing with clear visual feedback
Not ideal for: Beginners or those working with high-power applications beyond 150W
- Maximum Power:150W
- Maximum Load Current:20A
- Display:2.4-inch TFT color screen
- Working Modes:Constant current, voltage, power, resistance
- Protection:Voltage, current, overrun protections
- Additional Features:Discharge stop voltage, external NTC
Our verdict“This unit suits users seeking multi-mode testing with a user-friendly display, though it’s limited in power capacity for larger projects.”
ET5406A+ Electronic Load Tester, 200W 120V 20A Programmable DC Load with USB Control
The ET5406A+ stands out for its comprehensive programmability and USB remote control, making it ideal for automating testing sequences in prototyping. Its 200W capacity and wide voltage range accommodate various power sources, and high-resolution measurements ensure accuracy. Compared with other models like the MakerHawk, it offers more advanced control and safety features, although the setup can be demanding for less experienced users. The inclusion of multiple test modes—including battery and short circuit—expands its utility for sophisticated testing workflows. This pick is well-suited for advanced prototyping where automation and detailed measurements are priorities, yet it requires some technical proficiency to operate effectively.
Pros:- Supports multiple test modes including battery and short circuit
- High-resolution voltage and current measurements
- USB control for automation and remote operation
- Built-in safety protections
Cons:- Complex setup process
- Limited to 200W power capacity
Best for: Engineers and researchers automating tests across multiple power systems
Not ideal for: Hobbyists seeking simple, plug-and-play solutions or those with limited technical skills
- Power:200W
- Voltage Range:0-120V
- Current Range:0-20A
- Resolution Voltage:1mV/10mV
- Resolution Current:1mA/10mA
- Modes:CC, CV, CR, CP, Dynamic, List, Scan, Battery, Short Circuit
Our verdict“This programmable load is best for advanced users needing automated testing and high measurement precision, at the cost of a steeper learning curve.”
DROK USB Load Tester, Electronic Load Test Resistor Module 25W with USB and Type-C Interface, Adjustable Constant Current 0.25A-4A, Intelligent Temperature Control with Cooling Fan
This USB load tester excels in testing charging cables and power adapters, offering adjustable current and voltage to simulate real-world charging scenarios. Compared to the more sophisticated Rigol DL3021, it provides a simpler, more affordable solution for quick, accurate assessments of USB and Type-C cables. While it includes multiple protections and a digital display, it lacks reverse connection protection and is limited to 25W, making it less suitable for high-power applications. Its cooling fan and temperature controls keep performance steady during extended tests, but manual setup is necessary, and it requires correct polarity. This model stands out for its ease of use and safety features at a budget-friendly price, ideal for prototyping and quick cable testing.
Pros:- Adjustable current and voltage for flexible testing
- Multiple protections ensure safety during testing
- Digital display provides real-time feedback
- Cooling fan maintains consistent temperature
Cons:- No reverse connection protection, risking damage if connected incorrectly
- Limited to 25W output, unsuitable for high-power devices
Best for: Prototypers and hobbyists testing USB or Type-C charging cables and adapters
Not ideal for: Power engineers needing high wattage or complex automation capabilities
- Power:25W
- Current Range:0.25A-4A
- Voltage Range:Up to 30V
- Display:4-bit LED
- Protection:Over-voltage, over-power, over-temperature
- Cooling:Intelligent temperature control with cooling fan
Our verdict“This load tester offers a practical, safe solution for USB and Type-C cable testing, making it perfect for prototyping but not for high-power applications.”
Rigol DL3021 Programmable DC Electronic Load, 150V/40A, 200W, 15kHz High Speed
The Rigol DL3021 stands out for its high-speed 15kHz dynamic mode, ideal for analyzing transient responses in prototypes. It features a vibrant touchscreen, multiple communication interfaces, and robust safety protections, making it well-suited for automation and detailed testing. Compared with the MakerHawk Battery Load Tester, it offers greater precision and faster response times but is more complex to set up and operates within a 150V/40A limit, which may restrict high-power applications. Its price is higher, reflecting its professional-grade features. This device is better suited for engineers conducting detailed R&D and automation testing rather than casual or hobbyist use.
Pros:- High-speed 15kHz dynamic testing for transient analysis
- Intuitive touchscreen interface simplifies operation
- Multiple interfaces enable automation and remote control
- Strong safety protections for reliable long-term use
Cons:- Limited to 150V and 40A, not suitable for higher power systems
- Setup complexity may require technical knowledge
- Price may be prohibitive for casual users
Best for: Electronics developers needing precise, automated, high-speed transient testing
Not ideal for: Beginners or hobbyists without technical expertise or higher power needs
- Voltage:150V
- Current:40A
- Power:200W
- Frequency:15kHz
- Display:4.3-inch TFT LCD
- Protection Features:Overvoltage, Overcurrent, Overtemperature
Our verdict“This programmable load excels in precision and automation for professional R&D, but its complexity and cost make it less ideal for casual prototyping.”
MakerHawk Battery Load Tester – 180W 200V 20A USB Load Tester 4-Wire System Adjustable Constant Current
The MakerHawk Battery Load Tester offers a comprehensive toolkit for testing batteries, chargers, and power banks, with a large color display and support for multiple discharge modes. Its 4-wire system delivers high-precision measurements, making it suitable for detailed testing of lithium batteries and power supplies. Compared to the simpler DROK USB Load Tester, it provides more features but requires a 200V power source and some technical skill for operation. Its size and complexity make it less portable and beginner-friendly, yet its app connectivity and safety protections appeal to experienced users. This device is best for developers needing detailed, multi-mode testing and high accuracy in a lab setting.
Pros:- High-precision four-wire measurement system
- Supports multiple discharge modes and app connectivity
- Built-in intelligent cooling system prolongs device life
- Versatile testing for various power sources
Cons:- Requires a 200V power supply, limiting portability
- Relatively large and complex for simple testing needs
- Operation may demand technical familiarity
Best for: Battery researchers, power supply developers, and experienced prototypers
Not ideal for: Casual hobbyists or users with limited space or technical knowledge
- Power:180W
- Voltage:200V
- Current:20A
- Display:2.4-inch color screen
- Discharge Modes:Constant current, power, resistance, voltage
- Protection:Overload, overcurrent, high temperature
Our verdict“This load tester provides advanced features and accuracy for professional battery and power supply testing, though its complexity and power requirements limit casual use.”
East Tester ET5406A+ DC Electronic Load 200W 120V 20A
The East Tester ET5406A+ offers a flexible platform for battery and power supply testing, supporting multiple modes including programmable step loads and waveform generation. Its ability to simulate dynamic loads makes it suitable for performance analysis and short circuit testing. Compared with the OWON OEL1515, it provides a broader range of modes but has a more complex interface that might challenge new users. Its 200W capacity suits many prototype needs, yet it’s less refined in automation features. The interface may require some training, but its comprehensive testing capabilities make it a solid choice for experienced engineers. This device is recommended for those needing detailed, multi-mode testing with versatility in power and battery analysis.
Pros:- Supports multiple testing modes including programmable load steps
- Includes short circuit and waveform testing features
- Flexible for battery and power supply performance analysis
- Powerful 200W capacity for diverse applications
Cons:- Limited to 200W, unsuitable for higher power systems
- Complex interface may require training for optimal use
- No automation or remote control features
Best for: Power supply engineers and advanced prototypers requiring dynamic and comprehensive testing
Not ideal for: Beginners or casual hobbyists who need simple, plug-and-play solutions
- Power:200W
- Voltage:120V
- Current:20A
- Modes:CC, CV, CR, CP
Our verdict“This versatile load tester suits advanced users needing detailed, multi-mode testing but may be too complex for novices or basic prototyping tasks.”
OWON Programmable DC Electronic Load OEL1515, 150V 15A 150W with USB/RS232, 4 Modes, 5kHz Dynamic, 2.8″ TFT Display
The OWON OEL1515 combines high-speed dynamic testing at 5kHz with versatile operation modes, making it suitable for detailed R&D work. Its user-friendly 2.8-inch TFT display and multiple connectivity options enable seamless integration into testing setups. When compared to the East Tester ET5406A+, it offers faster dynamic response and more refined control, but its 150W limit constrains high-power applications. Its safety features like OCP and OVP enhance reliability. This product appeals to engineers needing real-time, high-speed testing and remote control capabilities, although setup may require some technical knowledge. This device is ideal for research environments where high-speed dynamic testing and connectivity are priorities.
Pros:- Supports multiple operation modes for versatile testing
- High-speed dynamic testing at 5kHz
- USB, RS232, and RS485 connectivity for seamless control
- Built-in safety features for reliable operation
Cons:- Limited to 150W power output, restricting high-power use
- Complex setup may challenge less experienced users
- Requires technical familiarity for optimal operation
Best for: Research and development teams focused on high-speed testing and detailed power analysis
Not ideal for: Users needing high power output or simple plug-and-play testing
- Voltage Range:0-150V
- Current Range:0-15A
- Power:150W
- Operation Modes:CV, CC, CR, CP
- Dynamic Frequency:up to 5kHz
- Display:2.8-inch TFT color LCD
Our verdict“This high-speed, connectivity-rich electronic load is perfect for R&D settings demanding precise, real-time performance testing, with some complexity for novice users.”
Programmable DC Electronic Load 120W, 0-150V, 0-20A, 0.1-999.9Ω, Supports CC, CV, CR, CP Modes
This model stands out for its versatility in supporting multiple testing modes, including constant current, voltage, resistance, and power, making it suitable for many prototyping needs. Compared with the ET5410A+, it offers a more straightforward interface and a clear LED display, which simplifies operation for users new to electronic loads. However, with a maximum power handling of only 120W, it limits testing of higher-capacity power supplies and batteries. The device’s broad voltage and current ranges provide flexibility, but its complexity can be intimidating for absolute beginners unfamiliar with load testing concepts. This pick is ideal for hobbyists and students who need an affordable, multi-mode tester without excessive power capacity.
Pros:- Supports multiple testing modes for versatile use
- Wide voltage and current ranges suitable for various applications
- Clear LED display for real-time measurements
- Includes watt-hour and amp-hour measurement functions
Cons:- Limited to 120W power handling capacity
- Complex interface may challenge beginners
Best for: Electronics hobbyists and students new to load testing seeking a compact, multi-mode device
Not ideal for: Professional labs or advanced prototyping where higher power capacity and more advanced features are required
- Power:120W
- Voltage Range:0-150V
- Current Range:0-20A
- Resistance Range:0.1-999.9Ω
- Modes:CC, CV, CR, CP
- Measurement Functions:Watt-hours, Amp-hours
Our verdict“This device makes the most sense for hobbyists or students who want an affordable, multi-mode electronic load for basic prototyping tasks.”

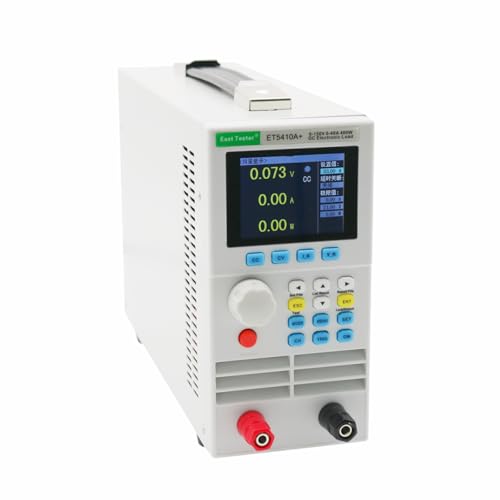

ET5410A+ Electronic Load Tester, 400W 0-150V 0-40A Programmable DC Load Tester with USB Control and 2.8″ TFT LCD
The ET5410A+ earns its spot as the most powerful option in this roundup, with a 400W capacity and a high current range up to 40A, making it ideal for testing larger power supplies and chargers. Its 2.8-inch TFT LCD provides a clear interface, and the inclusion of USB control offers remote operation capabilities, unlike the simpler display on the 120W model. While its high-resolution measurements and safety protections enhance reliability, the device’s 400W limit still falls short for industrial-scale testing, and the smaller display size may be less comfortable for detailed adjustments. Additionally, users need some technical familiarity to fully leverage its features, especially via USB. This is best suited for professionals or advanced hobbyists who require significant power capacity and remote operation options.
Pros:- High power capacity of 400W for demanding tests
- High-resolution measurement for precise readings
- USB connectivity for remote operation
- Built-in safety protections for secure testing
Cons:- Limited to 400W, which may be insufficient for some industrial applications
- Requires technical knowledge for optimal use
- Display size could be larger for easier viewing
Best for: Power supply engineers and experienced hobbyists needing high-power testing with remote control features
Not ideal for: Beginners or users with limited technical skills who prefer plug-and-play simplicity
- Power:400W
- Voltage Range:0-150V
- Current Range:0-40A
- Display:2.8-inch TFT LCD
- Test Modes:12
- Protection Features:Over-voltage, over-current, over-power, over-temperature
- Connectivity:USB
Our verdict“This pick makes the most sense for experienced users needing high-power load testing with remote control capabilities.”
How We Picked
These products were evaluated based on their performance specifications, usability, build quality, control options, and value for money. Priority was given to devices that offer precise control over current, voltage, and resistance, as well as programmability for complex testing scenarios. Ease of use—such as clear displays and straightforward interfaces—also played a key role, along with reliability and customer feedback. The ranking reflects a balance between high-end features suitable for professional prototyping and budget-friendly options for hobbyists or beginners.Factors to Consider When Choosing Top Rated Electronic Load Tester For Electronics Prototyping
Choosing the right electronic load tester for electronics prototyping requires understanding several key factors. These devices are fundamental for testing power supplies and batteries under real-world conditions, but not all models suit every project. By considering power capacity, control flexibility, user interface, and compatibility, you can select a device that enhances your workflow and results. Here are the main factors to keep in mind:Power Capacity and Voltage Range
Ensure the load tester can handle the maximum voltage and current your projects require. Over-specifying can increase cost unnecessarily, but underspecifying risks inaccurate testing or device damage. For most prototyping tasks, a device with a 150V and 40A capacity provides ample headroom. Consider your typical project demands and choose a model that comfortably exceeds those limits to avoid limitations during critical tests.
Control and Programmability
Advanced control features like programmable current, voltage, and resistance modes allow for dynamic testing scenarios, which are essential in prototyping. Look for models with USB or RS232 interfaces for remote operation and automation. Budget options may offer manual adjustments only, which can be limiting for complex testing, so decide how much automation and precision your projects require.
User Interface and Display
An intuitive interface, such as a TFT display, simplifies setup and real-time monitoring. While cheaper models may rely on simple LED indicators or minimal screens, higher-end units often feature touchscreens or detailed readouts that improve user experience. Consider your familiarity with digital controls—more sophisticated displays reduce setup errors and provide clearer data visualization.
Build Quality and Reliability
A well-built device with quality components ensures longevity and consistent performance, especially during prolonged testing sessions. Cheaper units may suffer from overheating or mechanical failure, which can disrupt your workflow. Opt for brands with positive reviews on durability, and check whether the device has adequate cooling features like fans or heat sinks.
Price and Overall Value
Price should reflect the features and build quality you need. While budget models are suitable for hobbyists, professional prototyping benefits from investing in more capable units with advanced programmability and durability. Balance your budget with your project requirements—sometimes paying more upfront reduces long-term costs by avoiding replacements or upgrades.
Frequently Asked Questions
Can I use a low-power electronic load tester for high-current projects?
Using a low-power tester for high-current applications is generally not advisable, as it can lead to inaccurate results or device damage. These testers are designed within specific voltage and current limits, and exceeding those can cause overheating or failure. For high-current projects, select a model with a power rating and current capacity that exceeds your maximum expected load, ensuring safe and reliable testing.
What features make a programmable electronic load more suitable for prototyping?
Programmable features like adjustable current, voltage, resistance, and dynamic modes such as CC, CV, CR, and CP are essential for flexible testing. USB or RS232 control interfaces enable automation, which saves time during repetitive tests. A clear, responsive display and reliable control firmware further improve usability, making these models better suited for iterative prototyping workflows.
Is a higher price always better when choosing an electronic load tester?
Not necessarily. Higher-priced models usually offer more features, better build quality, and greater precision, which are important for professional prototyping. However, for simple testing tasks or hobby projects, a more affordable unit with essential features may suffice. Carefully match the device’s capabilities to your project requirements to avoid overspending or under-equipping your setup.
How important is the control interface in everyday use?
The control interface greatly impacts ease of use and efficiency. Touchscreens and detailed displays facilitate quick setup and real-time monitoring, reducing errors. If you prefer manual controls or minimal interfaces, budget models may be adequate, but for frequent, complex testing, investing in a unit with an intuitive control system can save time and improve accuracy.
Should I prioritize a higher wattage capacity or more features?
This depends on your primary use case. If your projects involve high-power components, prioritize wattage capacity to handle larger loads safely. However, if your focus is on detailed testing and automation, more features like programmability and remote control can be more beneficial. Ideally, choose a model that balances both, aligned with your specific needs and future growth plans.
Conclusion
For most professional electronics prototyping, the Rigol DL3031A offers a compelling mix of power, control, and programmability, making it the best overall choice. Hobbyists or those just starting out might lean toward the MakerHawk Electronic Load Tester for its balance of features and affordability. The OWON OEL1515 is ideal for users prioritizing ease of use and a clear display without breaking the bank. For high-power or highly automated testing, the ET5410A+ provides the most advanced capabilities. Your specific project demands and budget will determine which pick aligns best with your needs.
Halloween Picks
halloween
As an affiliate, we earn on qualifying purchases.
