If you’re looking for the best benchtop LCR meters for electronics prototyping in 2026, I recommend considering options like the MATRIX MCR5200, ET4501, BHYIQI, Extech LCR200, and LC1020E. These models offer high accuracy, wide frequency ranges, and excellent connectivity, making them ideal for precise component testing. Each provides user-friendly interfaces and calibration features to guarantee reliable results. Keep browsing to discover which model fits your needs best.
Key Takeaways
- Look for high-precision models with 0.1% accuracy, wide measurement ranges, and calibration features for reliable component testing.
- Choose meters with broad frequency ranges (10Hz–200kHz or more) to analyze complex and high-frequency circuits effectively.
- Prioritize devices with versatile data connectivity options (USB, GPIB, software integration) for seamless automation and data management.
- Opt for user-friendly interfaces with clear displays, intuitive controls, and visual indicators to ensure efficient and error-free measurements.
- Select top-rated models known for stability, minimal drift, and consistent performance to support accurate electronics prototyping.
| MATRIX MCR5200 Benchtop LCR Meter with USB |  | Professional Precision | Measurement Parameters: Inductance, Capacitance, Resistance, Impedance, ESR, Q, Phase | Frequency Range: 40Hz–200kHz | Display Type: TFT LCD | VIEW LATEST PRICE | See Our Full Breakdown |
| ET4501 LCR Meter Capacitance & Resistance Tester |  | Versatile Testing | Measurement Parameters: Inductance, Capacitance, Resistance, Impedance | Frequency Range: 10Hz–10kHz | Display Type: 5-digit LCD | VIEW LATEST PRICE | See Our Full Breakdown |
| BHYIQI Benchtop LCR Meter with Frequency Range |  | Advanced Features | Measurement Parameters: Inductance, Capacitance, Resistance, Reactance, Dissipation, Quality Factor, Phase, DCR | Frequency Range: 10Hz–100kHz | Display Type: True color TFT-LCD | VIEW LATEST PRICE | See Our Full Breakdown |
| Extech LCR200 – Passive Component LCR Meter |  | Portable Reliability | Measurement Parameters: Inductance, Capacitance, Resistance, ESR, Q, D, Phase | Frequency Range: 100Hz–100kHz | Display Type: Dual backlit LCD | VIEW LATEST PRICE | See Our Full Breakdown |
| LC1020E 100kHz LCR Meter and SMD Tester |  | Affordable Accuracy | Measurement Parameters: Inductance, Capacitance, Resistance, ESR, Q, D, Phase, Z, X | Frequency Range: 100Hz–100kHz | Display Type: 19,999-count LCD | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
MATRIX MCR5200 Benchtop LCR Meter with USB
If you’re looking for a reliable benchtop LCR meter that combines high precision with versatile data management, the MATRIX MCR5200 is an excellent choice. It covers a wide frequency range of 40Hz to 200kHz and offers 0.1% accuracy, making it perfect for detailed component testing. Its large 4.3-inch TFT display shows five-digit readings for inductance, capacitance, resistance, impedance, reactance, and more. With support for manual, hold, and automatic calibration, plus open/short circuit calibration, it guarantees accurate measurements. The built-in comparator with alarm modes simplifies troubleshooting, while USB and other ports enable easy data export for analysis and documentation.
- Measurement Parameters:Inductance, Capacitance, Resistance, Impedance, ESR, Q, Phase
- Frequency Range:40Hz–200kHz
- Display Type:TFT LCD
- Calibration Features:Open/Short, manual/auto calibration
- Data Output/Connectivity:RS232, USB, GPIB, software export
- Test Frequency Selection:Manual, automatic modes
- Additional Feature:Built-in comparator alarms
- Additional Feature:Multiple measurement modes
- Additional Feature:Automatic calibration options

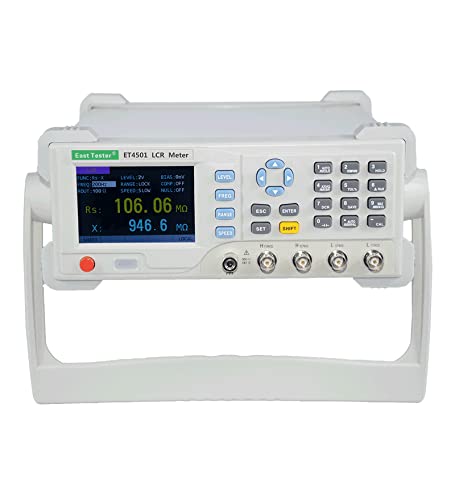

ET4501 LCR Meter Capacitance & Resistance Tester
The ET4501 LCR Meter stands out as an ideal choice for electronics enthusiasts and professionals who need precise and versatile measurement capabilities. It covers a wide frequency range from 10Hz to 10kHz, suitable for various circuits. Its measurement ranges are impressive: inductance from 0.001µH to 9999H, capacitance from 0.001pF to 99.999mF, and resistance from 0.0001Ω to 99.99MΩ. With 0.1% accuracy and ultra-fine resolution, it guarantees reliable readings for demanding tasks. Adjustable test speeds, multiple voltages, and dual impedance modes allow tailored testing. Built-in calibration and rapid batch sorting make it a powerful tool for R&D and production environments.
- Measurement Parameters:Inductance, Capacitance, Resistance, Impedance
- Frequency Range:10Hz–10kHz
- Display Type:5-digit LCD
- Calibration Features:Open/Short calibration
- Data Output/Connectivity:Built-in comparator, data storage
- Test Frequency Selection:Fixed test frequencies (10Hz–10kHz)
- Additional Feature:Adjustable test voltages
- Additional Feature:Dual impedance modes
- Additional Feature:Customizable tolerance limits
BHYIQI Benchtop LCR Meter with Frequency Range
The BHYIQI Benchtop LCR Meter stands out for its wide frequency range, making it ideal for professionals who need precise measurements from low to higher frequencies. It covers 10Hz to 100kHz with a 0.001Hz resolution, supporting multiple test functions like Cs-Rs, Cp-D, Lp-Q, and more. The device can test four parameters simultaneously and scan across 10 frequency or level lists, ensuring versatile analysis. Its adjustable signal levels and bias options enhance measurement accuracy under different conditions. With a clear color display and all-encompassing connectivity—USB, RS232, and RS485—it integrates seamlessly into automation setups, boosting efficiency in electronic component testing.
- Measurement Parameters:Inductance, Capacitance, Resistance, Reactance, Dissipation, Quality Factor, Phase, DCR
- Frequency Range:10Hz–100kHz
- Display Type:True color TFT-LCD
- Calibration Features:Calibration with user groups
- Data Output/Connectivity:RS232, RS485, USB, automation support
- Test Frequency Selection:Continuous, configurable frequency groups
- Additional Feature:Simultaneous four-parameter testing
- Additional Feature:Multiple calibration groups
- Additional Feature:PLC-compatible sorting
Extech LCR200 – Passive Component LCR Meter
Designed for precise passive component measurements, the Extech LCR200 stands out as an excellent choice for electronics enthusiasts and professionals alike. It accurately measures inductance, capacitance, resistance, and other parameters with an impressive ±0.5% accuracy. Its high-contrast dual backlit display supports simultaneous readings of up to 20,000 and 2,000 counts, making it easy to interpret results. The device offers five selectable test frequencies, from 100Hz to 100kHz, and supports series or parallel circuit testing. Additional features like open/short calibration, a built-in test fixture, and auto-power-off ensure reliable, versatile testing in lab, industrial, or field environments.
- Measurement Parameters:Inductance, Capacitance, Resistance, ESR, Q, D, Phase
- Frequency Range:100Hz–100kHz
- Display Type:Dual backlit LCD
- Calibration Features:Open/Short calibration
- Data Output/Connectivity:USB, external leads, data hold
- Test Frequency Selection:Selectable test frequencies (100Hz–100kHz)
- Additional Feature:Dual backlit display
- Additional Feature:Multiple circuit modes
- Additional Feature:Portable compact design
LC1020E 100kHz LCR Meter and SMD Tester
If you need a versatile and precise benchtop LCR meter for electronics prototyping, the FNIRSI LC1020E stands out with its ability to measure multiple parameters simultaneously, including ESR, Q, D, and θ. It features a 19,999-count display for accurate readings and offers fast, medium, and slow measurement speeds. Supporting modes like AUTO, Capacitance, Resistance, Inductance, and ESR, it covers a wide range of components. With adjustable frequency options up to 100kHz and calibration features such as open/short calibration, it guarantees reliable results. The device’s sorting functions, visual indicators, and extensive display make testing efficient and straightforward.
- Measurement Parameters:Inductance, Capacitance, Resistance, ESR, Q, D, Phase, Z, X
- Frequency Range:100Hz–100kHz
- Display Type:19,999-count LCD
- Calibration Features:Open/Short calibration, internal bias
- Data Output/Connectivity:Data recording, preset nominal/tolerance
- Test Frequency Selection:Multiple fixed frequencies (100Hz–100kHz)
- Additional Feature:Multi-parameter display
- Additional Feature:SMD component testing
- Additional Feature:Internal success/failure tracking
Factors to Consider When Choosing the Top-Rated Benchtop LCR Meter for Electronics Prototyping
When selecting a benchtop LCR meter, I focus on key factors like measurement range and accuracy to guarantee precise readings. I also consider the frequency options, calibration stability, and how easily I can connect and export data. Finally, I look for a user-friendly interface to streamline my prototyping process.
Measurement Range and Accuracy
Choosing a benchtop LCR meter with the right measurement range and accuracy is critical for effective electronics prototyping. A broad measurement range lets me test a variety of components, from tiny inductors to large capacitors, ensuring versatility. High accuracy, often within 0.1%, is essential for precise component characterization and reliable circuit performance. Resolution matters too; a 5-digit or higher display helps me detect subtle differences in parameters. Additionally, the frequency range—such as 40Hz to 200kHz—affects measurement precision at different signal conditions. Calibration features like open/short circuit calibration are necessary, as they help eliminate stray impedance effects, improving overall accuracy. Balancing range and accuracy ensures I get reliable, detailed measurements critical for successful prototyping.
Frequency Range Options
Selecting a benchtop LCR meter with the right frequency range is vital for accurately testing different components and circuits. A wider frequency span, from around 10Hz up to 200kHz or more, offers greater versatility in measurements. This flexibility allows me to analyze impedance, reactance, and ESR at frequencies relevant to real-world operation. Some meters feature fixed frequency settings, while others provide continuous adjustable control for fine-tuning tests. Matching the frequency range to your specific application guarantees precise characterization of components, especially when dealing with complex or high-frequency circuits. Having the ability to select specific frequencies helps identify how components behave under different conditions, leading to more accurate and reliable results during prototyping.
Calibration and Stability
Ensuring measurement accuracy and consistency is essential for reliable electronics prototyping, and proper calibration plays a key role in that process. A benchtop LCR meter with automatic calibration features helps reduce user error and speeds up setup, making testing more efficient. Stability over time and temperature variations is equally important, as it minimizes drift and keeps measurements reliable during long sessions. Open/short circuit calibration is vital for eliminating stray parasitic effects, ensuring precise readings of inductance, capacitance, and resistance. Regular calibration verification with known standards is necessary to maintain ongoing accuracy and meet industry standards. When choosing a meter, look for models that offer these calibration features and demonstrate strong stability, so you can trust your measurements throughout your prototyping process.
Data Connectivity and Export
When evaluating benchtop LCR meters for electronics prototyping, it’s essential to take into account their data connectivity options. I look for devices that offer multiple export methods like USB, RS232, RS485, or GPIB, ensuring smooth integration with computers and automation setups. Supporting standard protocols such as SCPI or Modbus makes data transfer easier and compatible across various software platforms. It’s also important that the meter can save measurement data internally or externally, allowing for efficient logging and long-term analysis. Some models include built-in software or compatible applications that facilitate exporting data directly into formats like CSV, TXT, or Excel, streamlining post-measurement analysis. Additionally, automatic data recording features during testing can save time and reduce manual errors.
User Interface Ease
A user-friendly interface can make all the difference when working with benchtop LCR meters. An intuitive layout with clear menus and labeled controls simplifies navigation and minimizes measurement errors. A large, backlit display ensures easy reading of results in various lighting conditions, enhancing usability. Controls should be logically organized, whether touchscreen or physical buttons, for quick access to frequently used functions. Visual indicators like icons and color codes help users rapidly interpret measurement status and warnings, reducing confusion. Additionally, multilingual options and customizable display settings can accommodate diverse users, making the device more accessible. Overall, a well-designed interface streamlines testing, saves time, and improves accuracy—key factors when selecting the best LCR meter for electronics prototyping.
Frequently Asked Questions
How Do I Interpret LCR Meter Measurement Results Accurately?
To interpret LCR meter results accurately, I focus on understanding what each measurement means. I check the readings for inductance, capacitance, and resistance, guaranteeing they match the component’s specifications. I also pay attention to units and measurement conditions, like frequency. If something seems off, I recalibrate or verify with a known reference. Clear documentation and comparing results over time help me ensure accuracy and consistency.
Can These Meters Test Surface-Mount and Through-Hole Components?
Yes, these meters can test both surface-mount and through-hole components. I’ve used them to measure tiny SMD parts and larger through-hole resistors and capacitors with ease. Their versatile testing modes adapt to different package types, making my prototyping process smoother. Just make certain you select the right test fixture or probe for each component type, and you’ll get accurate readings every time.
What Is the Typical Lifespan of a Benchtop LCR Meter?
Just like the Titanic’s legendary durability, a good benchtop LCR meter can last for many years, often 10-15 years with proper care. I’ve found that quality units from reputable brands tend to be more durable and maintain accuracy over time. Regular calibration and gentle handling help extend their lifespan. While technology advances, a well-maintained meter remains a reliable tool in my electronics work for a very long time.
Are Calibration and Maintenance Required for These Devices?
Yes, calibration and maintenance are essential for benchtop LCR meters. I make sure to calibrate mine regularly to guarantee accuracy, especially before critical measurements. Maintenance involves keeping the device clean, avoiding dust, and checking connections. Doing these steps keeps my meter reliable and prolongs its lifespan. Trust me, staying on top of calibration and maintenance saves time and prevents costly errors in your electronics projects.
Which Features Are Most Important for Professional Electronics Prototyping?
When choosing an LCR meter for professional prototyping, I prioritize accuracy, frequency range, and ease of use. Precise measurement capabilities help me identify issues early, while a wide frequency range allows testing across various components. Additionally, I look for a user-friendly interface and robust build quality to guarantee reliability during intensive projects. These features streamline my workflow and improve overall testing effectiveness.
Conclusion
Choosing the right benchtop LCR meter is like finding the perfect tool in a busy workshop—essential for smooth operation. I remember once struggling with inconsistent readings until I upgraded my meter; since then, my prototypes have become more reliable. These top-rated models in 2026 are your trusted allies, ensuring precision and confidence in every measurement. Invest in the right meter, and you’ll build electronics as smoothly as a craftsman carving fine details.
