Finding the right mixed signal oscilloscope for maker labs involves balancing performance, versatility, and ease of use. The Rigol MSO5104 stands out as the best overall choice, offering a high bandwidth and multiple channels for complex projects. The Siglent SDS2354X impresses with its high-definition display and robust signal analysis capabilities, making it ideal for detailed troubleshooting. Meanwhile, the EspoTek Labrador offers an open-source, highly portable solution suited for education and prototyping. These options reveal tradeoffs between technical features, user interface, and budget constraints. Keep reading for a detailed breakdown to help you find the perfect fit for your maker lab needs.
Open a free Amazon Business account
Business pricing, bulk buying and tax-exempt orders.
Create a free accountAs an affiliate, we earn on qualifying purchases.
Key Takeaways
- High bandwidth and multiple channels are key for tackling complex mixed signals in maker projects.
- Display quality and user interface significantly impact ease of use, especially for beginners.
- Open-source and portable options like the EspoTek Labrador provide flexibility but may lack advanced features.
- Higher-priced models often include serial decoding and deeper measurement tools, justifying the investment for serious hobbyists.
- Budget options can handle basic measurement tasks but may fall short on speed and signal fidelity.
| Rigol MSO5104 Digital Oscilloscope, 100MHz, 4CH, 8GSa/s |  | Best Overall for Versatile Mixed Signal Analysis | Bandwidth: 100 MHz | Channels: 4 analog, 16 digital | Sample Rate: 8 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS2354X HD Mixed Signal Oscilloscope (4 Channels / 350 MHz) |  | Best for High-Speed Digital and Analog Mixed Signal Debugging | Bandwidth: 350 MHz | Channels: 4 analog, 16 digital (requires options) | Waveform Capture Rate: up to 500,000 wfm/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS814X HD 12-bit Mixed Signal Oscilloscope (4 Channel / 100 MHz) |  | Best for High-Resolution Detailed Signal Analysis | Bandwidth: 100 MHz | Channels: 4 analog / 16 digital | Sample Rate: 2 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS2204X HD – Mixed Signal Oscilloscope (4 Channels / 200 MHz) |  | Best for Versatile Signal Analysis at Moderate Bandwidth | Bandwidth: 200 MHz | Channels: 4 analog, 16 digital (requires options) | Waveform Capture Rate: up to 500,000 wfm/s | VIEW ON AMAZON | See Our Full Breakdown |
| SainSmart Micsig 12-bit High-Resolution Tablet Oscilloscope MHO1 |  | Best for Portable High-Resolution Field Testing | Bandwidth: 100 MHz | ADC Resolution: 12-bit | Memory Depth: 110 Mpts | VIEW ON AMAZON | See Our Full Breakdown |
| EspoTek Labrador: Open-Source USB Oscilloscope, Signal Generator, Power Supply, Logic Analyzer, Multimeter |  | Best for Makers and Students Seeking Versatility and Open-Source Flexibility | Oscilloscope Channels: 2 | Oscilloscope Sample Rate: 750ksps | Waveform Generator Channels: 2 | VIEW ON AMAZON | See Our Full Breakdown |
| Rigol DS1104Z Plus 4-Channel Digital Oscilloscope, 100MHz, 1GSa/s, 24Mpts |  | Best for Detailed Signal Analysis and Troubleshooting | Channels: 4 | Bandwidth: 100 MHz | Sample Rate: 1 GSa/s | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent SDS1104X HD – 4 Channel 100 MHz Mixed Signal Oscilloscope |  | Best for High-Precision Research and Educational Use | Channels: 4 | Bandwidth: 100 MHz | Resolution: 12-bit | VIEW ON AMAZON | See Our Full Breakdown |
| Siglent Technologies SDS1104X-E 100MHz Digital Oscilloscope, 4 Channels, Serial Bus Decoding, Grey |  | Best for Serial Protocol Decoding and Troubleshooting | Frequency: 100 MHz | Channels: 4 | Serial Bus Decoding: IIC, SPI, UART, CAN, LIN | VIEW ON AMAZON | See Our Full Breakdown |
| Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz Bandwidth, 2 Channels |  | Best for Budget-Conscious Users Requiring Higher Bandwidth | Bandwidth: 150 MHz | Channels: 2 | Trigger Modes: 14 kinds | VIEW ON AMAZON | See Our Full Breakdown |
| FNIRSI DPOS350P 4-in-1 350MHz Digital Oscilloscope, 2 Channel, 1 GSa/s |  | Best for Portable Field Use and Multi-Function Testing | Bandwidth: 350 MHz | Sampling Rate: 1 GSa/s | Channels: 2 | VIEW ON AMAZON | See Our Full Breakdown |
| Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz, 1GSa/s, 8M Memory, 2 Channels + 1 Channel Waveform Generator |  | Best for Versatile Bench Testing and Protocol Analysis | Bandwidth: 150 MHz | Sampling Rate: 1 GSa/s | Channels: 2 + 1 (waveform generator) | VIEW ON AMAZON | See Our Full Breakdown |
| mixed signal oscilloscope for maker lab | Bandwidth | Channels | Display |
|---|---|---|---|
| Rigol MSO5104 Digital Oscillos | 100 MHz | 4 analog, 16 digital | — |
| Siglent SDS2354X HD Mixed Sign | 350 MHz | 4 analog, 16 digital (requires options) | 15.6-inch color LCD |
| Siglent SDS814X HD 12-bit Mixe | 100 MHz | 4 analog / 16 digital | 7-inch touch screen |
| Siglent SDS2204X HD | 200 MHz | 4 analog, 16 digital (requires options) | 8.4-inch LCD |
| SainSmart Micsig 12-bit High-R | 100 MHz | — | 8-inch HD touch screen |
| EspoTek Labrador: Open-Source | — | — | — |
| Rigol DS1104Z Plus 4-Channel D | 100 MHz | 4 | — |
| Siglent SDS1104X HD | 100 MHz | 4 | — |
| Siglent Technologies SDS1104X- | — | 4 | — |
| Hantek DSO2D15 Digital Storage | 150 MHz | 2 | — |
| FNIRSI DPOS350P 4-in-1 350MHz | 350 MHz | 2 | 7-inch touchscreen |
| Hantek DSO2D15 Digital Storage | 150 MHz | 2 + 1 (waveform generator) | 7-inch TFT LCD, 800×480 |
More Details on Our Top Picks
Rigol MSO5104 Digital Oscilloscope, 100MHz, 4CH, 8GSa/s
The Rigol MSO5104 stands out for its high sampling rate and large memory capacity, making it ideal for detailed waveform analysis in complex maker projects. Compared with the Siglent SDS814X, it offers a much higher sample rate and more digital inputs, which is beneficial for capturing fast signals and performing detailed digital-analog correlation. However, its setup can be daunting for newcomers, especially since some features like the digital inputs require separate active probes and optional upgrades. This scope is best suited for advanced hobbyists or professionals who need comprehensive mixed signal capabilities and are comfortable with complex interfaces. The multiple connectivity options, including web control and LAN, add to its flexibility for remote diagnostics, but the complexity may pose a challenge for absolute beginners.
Pros:- High sampling rate (8 GSa/s) for precise waveform capture
- Large 100 Mpts memory supports detailed analysis
- Multiple connectivity options including LAN and web control
- Segmented recording aids in analyzing intermittent signals
Cons:- Digital inputs require separate active logic probes
- Additional features like analog memory upgrades cost extra
- Complex setup may be challenging for new users
Best for: Experienced makers and electronics professionals needing detailed, high-speed mixed signal analysis.
Not ideal for: Beginners or hobbyists seeking a straightforward, plug-and-play oscilloscope without extensive configuration.
- Bandwidth:100 MHz
- Channels:4 analog, 16 digital
- Sample Rate:8 GSa/s
- Memory:100 Mpts
- Digital Inputs:16
- Connectivity:USB, LAN, HDMI, Web
Our verdict“This scope suits advanced users who prioritize detailed, fast data acquisition over ease of use.”
Siglent SDS2354X HD Mixed Signal Oscilloscope (4 Channels / 350 MHz)
The Siglent SDS2354X HD offers an impressive 350 MHz bandwidth and a rapid waveform capture rate, making it well-suited for high-speed digital and analog testing. Compared to the Siglent SDS814X, it provides a broader bandwidth and faster waveform rates, which benefit engineers working with faster signals. Digital channels, however, need additional options, adding complexity and cost for complete mixed signal testing. While its high sampling rate of 2 GSa/s supports precise waveform reconstruction, setup complexity and the need for extra accessories make it less ideal for beginners or casual hobbyists. This scope will appeal most to users requiring high-speed digital signal analysis combined with analog measurements, especially in R&D environments.
Pros:- High bandwidth (350 MHz) for fast signal analysis
- Exceptional waveform capture rate (up to 500,000 wfm/s)
- Supports mixed signal testing with digital channels
- High sampling rate (2 GSa/s) for accuracy
Cons:- Digital channels require additional options and accessories
- Complex setup for initial configuration
- Higher overall cost due to optional features
Best for: Electronics engineers or advanced hobbyists working with high-frequency digital and analog signals.
Not ideal for: Entry-level users or hobbyists who prefer simple, all-in-one solutions without additional options or upgrades.
- Bandwidth:350 MHz
- Channels:4 analog, 16 digital (requires options)
- Waveform Capture Rate:up to 500,000 wfm/s
- Sampling Rate:2 GSa/s
- Display:15.6-inch color LCD
- Connectivity:USB, LAN
Our verdict“This scope excels for users needing rapid, high-frequency mixed signal testing with a focus on speed and accuracy.”
Siglent SDS814X HD 12-bit Mixed Signal Oscilloscope (4 Channel / 100 MHz)
The Siglent SDS814X HD offers a 12-bit analog-to-digital conversion, which means finer resolution for capturing subtle signal nuances—crucial for detailed troubleshooting. Compared with the Siglent SDS2204X, it provides slightly lower bandwidth but excels in resolution and measurement precision, especially beneficial for sensitive analog signals. The 7-inch touch screen makes operation intuitive, but its weight (over 8 pounds) and the need for optional accessories for full digital trigger functionality can be limiting for portable or quick field tests. This model is best for users who prioritize measurement accuracy and detailed waveform analysis over raw speed or extensive digital channels, such as lab-based electronics work.
Pros:- High-resolution 12-bit ADC for precise measurements
- Large 7-inch touch screen for easy visualization
- Fast waveform capture rates (80,000 wfm/s normal, 500,000 wfm/s sequence)
- Supports mixed signal analysis
Cons:- Requires optional accessories for full digital trigger support
- Heavy and less portable for field use
- Learning curve due to advanced features
Best for: Electronics technicians and researchers focusing on high-resolution, detailed analog or mixed signals.
Not ideal for: Field engineers or hobbyists needing ultra-high bandwidth or portability for quick diagnostics.
- Bandwidth:100 MHz
- Channels:4 analog / 16 digital
- Sample Rate:2 GSa/s
- Memory Depth:50 Mpts
- Display:7-inch touch screen
- Waveform Capture Rate:80,000 wfm/s normal, 500,000 wfm/s sequence
Our verdict“Best suited for precise, high-resolution analysis where detail outweighs raw speed or portability.”
Siglent SDS2204X HD – Mixed Signal Oscilloscope (4 Channels / 200 MHz)
The Siglent SDS2204X HD offers a balanced mix of bandwidth (200 MHz) and digital channel support, making it a practical choice for many maker projects. Its waveform capture rate (up to 500,000 wfm/s) rivals higher-end models, delivering detailed signal insights quickly. While it shares similarities with the SDS2354X, its slightly lower bandwidth makes it less suitable for ultra-high-speed signals but still capable for most hobbyist and semi-professional testing. Digital channels require additional options, which can add to the overall cost and complexity. This oscilloscope suits users who want a reliable, versatile tool for general mixed signal work without the premium price of the highest bandwidth models.
Pros:- 200 MHz bandwidth for broad signal coverage
- High waveform capture rate (up to 500,000 wfm/s)
- Supports mixed signal testing with digital channels (with options)
- Sample rate up to 2 GSa/s for accurate waveform reconstruction
Cons:- Digital channels require extra options and accessories
- Limited to 4 analog channels, which may restrict complex setups
- Setup complexity for beginners
Best for: Hobbyists and small lab users needing a well-rounded scope for moderate-frequency mixed signals.
Not ideal for: Users working with very high-frequency signals over 350 MHz or requiring full digital channel integration without additional purchases.
- Bandwidth:200 MHz
- Channels:4 analog, 16 digital (requires options)
- Waveform Capture Rate:up to 500,000 wfm/s
- Sampling Rate:up to 2 GSa/s
- Display:8.4-inch LCD
- Connectivity:USB, LAN
Our verdict“This model balances performance and affordability for users needing versatile mixed signal analysis at moderate bandwidth.”
SainSmart Micsig 12-bit High-Resolution Tablet Oscilloscope MHO1
The SainSmart Micsig MHO1 excels as a portable, high-resolution device thanks to its 12-bit ADC and 8-inch HD touchscreen, making it ideal for field diagnostics and detailed troubleshooting. Compared to bench models like the SDS814X, it offers a lower bandwidth (100 MHz), but its 12-bit resolution provides finer detail essential for delicate analog signals. Its built-in multimeter and long-lasting 16,000mAh battery add convenience for on-the-go testing, especially in automotive or field electronics. However, the limited bandwidth may restrict use in high-frequency applications, and its weight and small display size could hinder quick or highly detailed analysis on complex signals. It’s best for those needing portability and resolution over ultra-high-frequency capabilities.
Pros:- 12-bit ADC for high-resolution signal capture
- Built-in multimeter simplifies measurement tasks
- Long battery life supports extended field use
- Compact, rugged design for portability
Cons:- Limited to 100 MHz bandwidth, less suitable for high-frequency signals
- Small display size may limit detailed analysis
- Heavier than some handheld models
Best for: Field technicians, automotive diagnostics, and hobbyists needing a portable high-resolution scope.
Not ideal for: Users requiring ultra-high bandwidth or extensive digital channels for advanced testing.
- Bandwidth:100 MHz
- ADC Resolution:12-bit
- Memory Depth:110 Mpts
- Display:8-inch HD touch screen
- Battery:16,000mAh
- Dimensions:3.1cm thick
Our verdict“This scope is ideal for portable, high-resolution analysis in field environments where bandwidth needs are moderate.”
EspoTek Labrador: Open-Source USB Oscilloscope, Signal Generator, Power Supply, Logic Analyzer, Multimeter
The EspoTek Labrador stands out for its multi-functionality within a compact, open-source package that turns any PC, Raspberry Pi, or Android device into a capable electronics lab. Unlike the more traditional and standalone Rigol DS1104Z Plus, it offers a broader set of tools—oscilloscope, waveform generator, power supply, logic analyzer, and multimeter—all in one, making it ideal for learners and hobbyists. However, with only 2 channels for scope and logic, it may fall short for complex projects requiring multiple simultaneous signals, and it relies heavily on a computer or device to operate, which could limit portability. Still, its open-source nature means users can customize and extend its capabilities, which is a major plus for makers.
Pros:- Open-source hardware and software with accessible design files
- Combines oscilloscope, waveform generator, power supply, logic analyzer, and multimeter
- Compatible across Windows, Mac, Linux, Android, and Raspberry Pi
Cons:- Limited to 2 channels for scope and logic analyzer, restricting complex multi-signal testing
- Requires a computer or compatible device to operate, reducing portability
Best for: Hobbyists, students, and makers who need a versatile, open-source device that integrates multiple measurement functions into a single, affordable platform.
Not ideal for: Professional engineers or advanced researchers needing high-channel count or ultra-high-frequency testing, as the limited channels and basic feature set may restrict complex analysis.
- Oscilloscope Channels:2
- Oscilloscope Sample Rate:750ksps
- Waveform Generator Channels:2
- Waveform Generator Rate:1MSPS per channel
- Power Supply Voltage Range:4.5 to 15V
- Logic Analyzer Channels:2
- Logic Analyzer Rate:3MSPS per channel
- Measurement Types:V/I/R/C
- Open Source:Yes
Our verdict“This device is best suited for makers and students who want a flexible, multi-function tool with open-source customization options, accepting some limitations in channels and portability.”
Rigol DS1104Z Plus 4-Channel Digital Oscilloscope, 100MHz, 1GSa/s, 24Mpts
The Rigol DS1104Z Plus offers four channels, a 100MHz bandwidth, and a 1GSa/s sampling rate, making it suitable for precise signal capture and complex waveform analysis. Compared with the Siglent SDS1104X HD, it provides a similar channel count but without the high-resolution 12-bit measurement, which limits accuracy for very fine signal details. Its deep 24Mpts memory supports complex signals, and the included software enhances analysis. However, the relatively modest bandwidth might restrict its use with very high-frequency signals, and its interface can be overwhelming for beginners. Overall, it’s a balanced choice for those needing detailed, multi-channel data without the steepest learning curve.
Pros:- High sampling rate ensures detailed waveform capture
- Large memory depth for complex signals
- Includes analysis software bundle for enhanced measurements
Cons:- Limited bandwidth for very high-frequency applications
- Can be complex for beginners to operate efficiently
Best for: Electrical engineers and technicians performing detailed troubleshooting and analysis of signals up to 100MHz in frequency.
Not ideal for: Hobbyists or students new to oscilloscopes who might find the interface and feature set overwhelming, or those working with signals above 100MHz.
- Channels:4
- Bandwidth:100 MHz
- Sample Rate:1 GSa/s
- Memory:24 Mpts
- Digital Channels:16
- Features:Built-in software bundle, Digital Logic Connector
Our verdict“This scope is a solid choice for professionals needing detailed multi-channel analysis within its bandwidth limits, accepting some complexity for advanced use.”

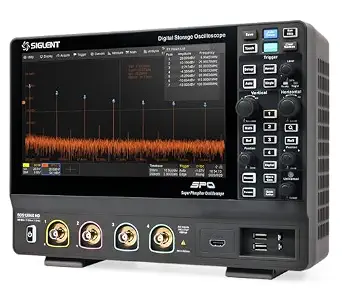

Siglent SDS1104X HD – 4 Channel 100 MHz Mixed Signal Oscilloscope
The Siglent SDS1104X HD distinguishes itself with a 12-bit resolution and a 2 GSa/s sampling rate, providing highly accurate measurements ideal for research and detailed educational demonstrations. Its long waveform capture duration and extensive analysis functions, including serial decoding, make it more capable than many scopes in this class. The 10.1-inch touchscreen simplifies complex operations, but its advanced features and high resolution may be intimidating for novices. Compared to the Siglent SDS1104X-E, it offers better resolution and longer waveform memory, though at a likely higher cost. This scope makes sense for advanced users who prioritize measurement precision and depth.
Pros:- 12-bit high-resolution measurement for precise data
- High sampling rate and long waveform memory
- Intuitive touchscreen interface with extensive analysis features
Cons:- Complex for users without prior scope experience
- Higher price point may not suit casual hobbyists
Best for: Researchers, advanced students, and professionals requiring high-precision measurements and comprehensive analysis tools.
Not ideal for: Beginners or hobbyists seeking a straightforward, budget-friendly scope with less complexity and lower cost.
- Channels:4
- Bandwidth:100 MHz
- Resolution:12-bit
- Sampling Rate:2 GSa/s
- Memory Length:100 Mpts
- Touch Screen:Yes, 10.1 inches
Our verdict“This device works best for users demanding high accuracy and advanced analysis capabilities, accepting a steeper learning curve and higher investment.”
Siglent Technologies SDS1104X-E 100MHz Digital Oscilloscope, 4 Channels, Serial Bus Decoding, Grey
The SDS1104X-E excels in serial bus decoding for IIC, SPI, UART, CAN, and LIN, making it a go-to for troubleshooting embedded systems. Its four channels and 100MHz bandwidth are comparable to the Rigol DS1104Z Plus, but with added focus on protocol analysis, including FFT and advanced triggering. The 256-level color grading display makes complex data easier to interpret, yet the feature set can be overwhelming for new users. While it offers fast waveform capture, its price and complexity might deter hobbyists or those new to oscilloscopes. Still, for detailed embedded system diagnostics, this scope delivers significant value.
Pros:- Supports multiple serial bus decoding protocols
- High signal fidelity with low noise and advanced triggering modes
- High-resolution display with color grading for clarity
Cons:- Steeper learning curve due to extensive features
- Price range not specified, possibly high for casual use
Best for: Embedded system engineers and troubleshooting specialists focusing on serial communications and complex protocol decoding.
Not ideal for: Hobbyists or beginners who need a simple scope without extensive protocol features or advanced triggering options.
- Frequency:100 MHz
- Channels:4
- Serial Bus Decoding:IIC, SPI, UART, CAN, LIN
- Display Features:256-level intensity grading, color temperature
- Waveform Capture Rate:400,000 frames/sec
- FFT Points:1 million
Our verdict“Ideal for embedded engineers needing detailed serial decoding, accepting a learning curve and potentially higher cost for advanced features.”
Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz Bandwidth, 2 Channels
The Hantek DSO2D15 offers a notable 150MHz bandwidth at an affordable price point, making it appealing for those who need more frequency range without breaking the bank. Its 2 channels and support for arbitrary waveform output, multiple trigger modes, and serial protocol decoding make it versatile for educational and embedded applications. Compared with the Siglent SDS1104X-E, it provides a higher bandwidth, but with less detail on specifications like sample rate or display resolution. The package weight of over 6 pounds may impact portability, but overall, it offers good value for hobbyists and students needing more frequency coverage.
Pros:- Affordable price for a 150MHz bandwidth scope
- Supports multiple trigger modes and serial protocol decoding
- Versatile for communications and embedded systems
Cons:- Limited to 2 channels, restricting complex multi-signal testing
- Lack of detailed specifications on sample rate and display features
Best for: Budget-conscious students and hobbyists who need a 150MHz scope for communication or embedded projects but can accept fewer channels and less detailed features.
Not ideal for: Advanced users or professionals requiring multi-channel, high-resolution measurements, or extensive analysis features.
- Bandwidth:150 MHz
- Channels:2
- Trigger Modes:14 kinds
- Serial Protocol Triggers:5 kinds
- Weight:6.33 Pounds
Our verdict“A practical choice for those needing higher bandwidth on a budget, with some compromise on multi-channel capabilities and detailed specs.”
FNIRSI DPOS350P 4-in-1 350MHz Digital Oscilloscope, 2 Channel, 1 GSa/s
The FNIRSI DPOS350P stands out for its portability and multi-function capabilities, making it an excellent choice for makers who need a versatile scope that can handle spectrum analysis, frequency response, and signal generation on the go. Its 350 MHz bandwidth and 1 GSa/s sampling rate provide solid performance for most maker projects, comparable to larger benchtop models like the Rigol MSO5104, but in a compact, battery-powered form. The built-in spectrum analyzer and DDS generator extend its usefulness beyond simple waveform observation, though the complexity of features might require a learning curve for newcomers. Limited to only 2 channels, it’s not ideal for complex multi-signal troubleshooting, and battery life details are not specified, which can be a concern for long field sessions.
Pros:- Portable design ideal for field use
- Includes spectrum analysis and signal generator functions
- Large 7-inch touchscreen for easy control
- High sampling rate of 1 GSa/s
Cons:- Complex feature set may challenge beginners
- Limited to 2 channels, restricting multi-signal analysis
- Battery life remains unspecified, impacting planning
Best for: Maker lab users and field technicians needing a portable, multi-purpose oscilloscope with spectrum analysis and signal generation.
Not ideal for: Advanced professionals requiring more than 2 channels or higher bandwidth for high-frequency RF testing.
- Bandwidth:350 MHz
- Sampling Rate:1 GSa/s
- Channels:2
- Display:7-inch touchscreen
- Memory Depth:47 Kpts
- Waveform Storage:500 waveforms
Our verdict“This scope suits makers and field technicians prioritizing portability and multi-functionality over high channel count or ultra-high bandwidth.”
Hantek DSO2D15 Digital Storage Oscilloscope, 150MHz, 1GSa/s, 8M Memory, 2 Channels + 1 Channel Waveform Generator
The Hantek DSO2D15 strikes a balance between performance and functionality, making it well-suited for makers who need detailed signal analysis alongside protocol decoding. Its 150 MHz bandwidth and 8M memory depth allow for precise capture and analysis of complex signals, comparable to the Siglent SDS2204X in terms of measurement modes but with added support for protocol decoding via its waveform generator. The 25 MHz waveform generator supports arbitrary waveforms, expanding testing capabilities, but the scope’s 150 MHz bandwidth limits its use for very high-frequency RF projects. Its 7-inch color display provides clear visualization, but the interface can feel cluttered for newcomers, requiring some learning effort.
Pros:- High bandwidth and deep memory for detailed analysis
- Built-in waveform generator supports arbitrary waveforms
- Supports protocol decoding and multi-measurement modes
- Large, clear color display
Cons:- Interface can be complex for beginners
- Limited to 150 MHz bandwidth, restricting RF testing
- No mention of battery operation, so mainly bench-based
Best for: Benchtop makers and electronics enthusiasts focused on detailed signal and protocol analysis in lab settings.
Not ideal for: Field users or those needing ultra-high bandwidth RF testing, as 150 MHz may be insufficient for high-frequency signals.
- Bandwidth:150 MHz
- Sampling Rate:1 GSa/s
- Channels:2 + 1 (waveform generator)
- Memory Depth:8M
- Display:7-inch TFT LCD, 800×480
- Waveform Generator Frequency:25 MHz
Our verdict“This scope offers a comprehensive set of features for detailed analysis and protocol decoding, ideal for dedicated lab environments rather than field use.”
How We Picked
These products were evaluated based on their technical specifications, build quality, ease of use, and versatility in a maker lab setting. Priority was given to bandwidth, channel count, sampling rate, and additional features like serial decoding or signal generation. Price-to-performance ratio also played a significant role, as well as user interface and portability for maker environments. The ranking reflects a balance between professional-grade features and accessibility for hobbyists and educators, ensuring options for various skill levels and budgets.Factors to Consider When Choosing Mixed Signal Oscilloscope For Maker Labs
Choosing the right mixed signal oscilloscope for maker labs requires understanding key factors that influence performance and usability. Beyond raw specs, consider how intuitive the interface is, whether the scope supports your specific signal types, and how future-proof your investment is. Making the wrong choice can lead to frustration or needing an upgrade sooner than expected. Here are the main points to keep in mind to ensure you select a scope that matches your projects and skill level.Bandwidth and Sample Rate
Bandwidth determines the highest frequency signals the scope can accurately measure. For most maker projects involving digital and analog signals, a bandwidth of at least 100 MHz is recommended. Higher bandwidths, like 200 MHz or more, provide greater headroom for fast signals and complex waveforms. The sample rate affects how precisely signals are reconstructed; a rate of at least 1 GSa/s is advisable for capturing fast-changing signals without aliasing. Balancing these specs against your budget helps prevent investing in overkill or underspec’d equipment.
Channels and Mixed Signal Capabilities
For maker labs working with both analog and digital signals, the number of channels matters. Four channels typically allow for monitoring multiple signals simultaneously, aiding troubleshooting. Some scopes also incorporate logic analysis and serial decoding, which are invaluable for digital circuit debugging. Assess whether your projects require these features, and avoid scopes with excessive channels or features if you’re just starting out or working on simple circuits, to avoid unnecessary cost.
Display and User Interface
A clear, high-resolution display makes a significant difference in interpreting measurements quickly. Touchscreen interfaces and intuitive menus reduce the learning curve, especially for newcomers. Conversely, complex menus or low-quality screens can slow down troubleshooting. Consider models with user-friendly software that integrates well with your computer if you prefer a larger view or advanced analysis tools. This balance between usability and advanced features is key to a satisfying experience.
Connectivity and Software
Modern scopes often include USB, Ethernet, or Wi-Fi interfaces for exporting data or remote control. Open-source options like the EspoTek Labrador emphasize compatibility with custom software, which can be advantageous for educational projects and experimentation. Compatibility with common analysis tools also matters if you plan to integrate the scope into a broader test setup. Weigh these features based on your need for data sharing, automation, or integration into larger systems.
Build Quality and Portability
Durability and size influence how easily the scope can be used in different environments. For maker labs with limited space, compact or portable scopes like the EspoTek Labrador provide convenience. However, more rugged, professional-grade models tend to have better build quality and long-term reliability. Consider where you’ll use the scope most frequently and whether portability or durability should take priority to match your workflow.
Frequently Asked Questions
Is a higher bandwidth scope always better for maker projects?
While higher bandwidth scopes allow you to measure faster signals accurately, they also tend to be more expensive and complex to operate. For typical digital and analog signals in maker labs, a scope with 100-200 MHz bandwidth usually provides sufficient headroom. Investing in higher bandwidth makes sense only if you work with very high-frequency signals or plan to advance your projects significantly. Otherwise, choosing a scope with the right specifications for your current needs can save money and simplify usability.
Should I prioritize a scope with serial decoding and advanced analysis features?
Features like serial decoding and advanced analysis tools are valuable if your projects involve digital communication protocols or complex troubleshooting. These capabilities save time by automatically interpreting signals and identifying issues. However, they also increase the scope’s cost and complexity. For beginners or simple analog projects, a basic scope with sufficient bandwidth and channels may be more appropriate, allowing you to learn fundamental concepts without unnecessary complexity.
Is portability important for a maker lab scope?
Portability becomes important if your workspace is limited or if you frequently move between different locations. Small, lightweight scopes like the EspoTek Labrador are easy to carry and set up, making them ideal for collaborative projects or outdoor testing. However, portable scopes sometimes compromise on features or display quality. If your lab is fixed in one place and space isn’t an issue, a larger, more feature-rich scope might provide a better user experience and longer durability.
How much should I expect to spend on a good mixed signal scope for maker labs?
Prices vary widely based on features, bandwidth, and build quality. Entry-level models with basic features can start around $300, suitable for simple digital projects. Mid-range scopes between $700 and $1500 offer higher bandwidth, more channels, and advanced features like serial decoding. Premium options exceeding $2000 provide professional-grade performance and robustness, ideal for complex or professional work. Your budget should reflect the complexity of your projects and how much future-proofing you require.
Can I use a general-purpose oscilloscope for mixed signals?
While many general-purpose oscilloscopes can handle basic mixed signals, they often lack dedicated digital channels or serial decoding capabilities. For maker labs focusing on digital communication or mixed analog/digital circuits, a scope explicitly designed for mixed signals provides more precise measurements and easier debugging. If your projects are mostly analog or simple digital signals, a standard scope might suffice; otherwise, investing in a dedicated mixed signal scope can save time and improve accuracy.
Conclusion
For maker labs aiming for overall versatility and advanced features, the Rigol MSO5104 offers a balanced combination of high bandwidth, multiple channels, and robust analysis tools, making it the best overall choice. Beginners or those on a budget will find the EspoTek Labrador an accessible, portable option that still covers essential needs. For educators or hobbyists seeking high-definition displays and detailed digital analysis, the Siglent SDS2354X stands out. If you prioritize value without sacrificing core performance, models like the Siglent SDS1104X HD provide solid performance at a more affordable price. Your specific project requirements and experience level should guide your final decision.
As an affiliate, we earn on qualifying purchases.NFL season / tailgating Picks
team gear
