6 Best Wide Format Blueprint Scanners for Industrial Designers in 2026

Finding the ideal wide format blueprint scanner for industrial design work involves balancing high resolution, scanning speed, and ease of use. The VIISAN VF3240 stands out as the best overall thanks to its fast 4-second scans and high DPI, perfect for quick, detailed CAD drawings. The Colortrac SmartLF offers a professional 36-inch wide scan, ideal for large-format engineering plans, while the Plustek S30 provides solid affordability for smaller projects. Buyers typically face tradeoffs between speed, resolution, and price, making it essential to weigh your specific workflow needs. Continue reading for a detailed breakdown of each option to find the best fit for your design practice.

Age 18–24?Offer from Amazon

Prime made for students and young adults

• Fast, free delivery for dorm and study essentials
• Prime Video and Amazon Music included
• Member-only deals

Try Prime for Young Adults →Free trial for eligible 18–24 year olds

As an affiliate, we earn on qualifying purchases.Hide

Key Takeaways

• The fastest scans come from VIISAN VF3240, but it may lack some advanced features offered by pricier models.
• Large-format capabilities are well-covered by Colortrac and VIISAN A2/A3 scanners, suitable for engineering or architecture drawings.
• Resolution varies significantly; higher DPI models like VIISAN A2/A3 and CZUR ET MAX deliver finer detail, crucial for detailed design work.
• Price points range widely, with budget options like Plustek S30 providing good value, while premium models target professional studios.
• Ease of use and software integration differ; flatbed scanners tend to be simpler, but document cameras offer versatile capturing options.

Our Top Wide Format Blueprint Scanner For Industrial Designers Picks

VIISAN VF3240 A3 Scanner – Fast 4-Second Scan, 2400 DPI High Resolution, Frameless Auto-Scan for CAD & Business		Best Overall for High-Volume, High-Resolution Office Use	Resolution: 2400 DPI	Color Depth: 48-bit	Scan Speed: 4 seconds at 200 DPI (A3)	VIEW ON AMAZON	See Our Full Breakdown
Plustek Large Format Document Scanner S30 – Wide Format Tabloid, Ledger, A3		Best Value for Compact, Wide-Format Document Scanning	Maximum Document Width: 12 inches	Supported Document Types: Blueprints, plans, drawings, purchase orders	Automatic Paper Detection: Yes	VIEW ON AMAZON	See Our Full Breakdown
VIISAN Large Format Book & Document Scanner, A2/A3 Capture, 26MP USB Document Camera with Auto-Flatten and OCR		Best for High-Resolution, Detailed Capture of Large Documents and Books	Capture Size: A2/A3	Resolution: 26MP (5888 × 4522 pixels)	Supported DPI: up to 600 DPI	VIEW ON AMAZON	See Our Full Breakdown
Colortrac SmartLF 36-inch Wide Format Scanner		Best for Large-Scale, High-Quality Color Archiving	Scan Width: 36 inches	Color Support: High-quality color	Intended Use: Professional large-format archiving	VIEW ON AMAZON	See Our Full Breakdown
Plustek OpticPro A320L Large Format Flatbed Scanner – 1600 dpi Optical		Best for Detailed, Wide-Format Flat Document Scanning	Scan Area: 12 x 17 inches	Optical Resolution: 1600 dpi	Sensor: Sony ILX560K CCD	VIEW ON AMAZON	See Our Full Breakdown
CZUR ET MAX Professional Book & Document Scanner, 38MP Document Camera		Best for High-Resolution Digital Archiving and Detailed Document Capture	Scanner Type: Book, Document	Connection Type: USB	Resolution: 7168 × 5376	VIEW ON AMAZON	See Our Full Breakdown

More Details on Our Top Picks

1. VIISAN VF3240 A3 Scanner – Fast 4-Second Scan, 2400 DPI High Resolution, Frameless Auto-Scan for CAD & Business



   Best Overall for High-Volume, High-Resolution Office Use

   View on Amazon

   The VIISAN VF3240 stands out for its combination of exceptional resolution and speed, making it ideal for busy offices handling blueprints or detailed CAD drawings. Compared to the Colortrac SmartLF, it offers significantly higher resolution, but it’s limited to flat materials and cannot handle large-format prints beyond A3. The frameless design and auto-scan feature streamline workflow, especially when digitizing multiple large documents quickly. However, its reliance on specific software and limited driver support on Windows could pose challenges for seamless integration. It’s best suited for professionals who need high-quality, fast scans of flat, medium-sized documents without the requirement for large-format output.

   Pros:

   • High-resolution 2400 DPI output captures vibrant detail
   • Fast 4-second scan speed boosts productivity
   • Frameless design enables edge-to-edge scanning of large documents

   Cons:

   • Limited to flat materials; cannot scan 3D objects or textiles
   • Requires specific software for full A3 resolution on Windows

   Best for: High-volume offices requiring fast, high-res scans of blueprints and CAD drawings

   Not ideal for: Users needing to scan oversized blueprints larger than A3 or 3D objects

   • Resolution:2400 DPI
   • Color Depth:48-bit
   • Scan Speed:4 seconds at 200 DPI (A3)
   • Maximum Document Size:A3 (12″ x 17″)
   • Compatibility:Windows 7/8.1/10/11, MacOS 10.15+
   • Sensor Type:CIS
   Our verdict

   “This scanner is perfect for professionals needing rapid, high-resolution scans of flat documents up to A3 size, with some software limitations.”

   → See it on Amazon →

2. Plustek Large Format Document Scanner S30 – Wide Format Tabloid, Ledger, A3



   Best Value for Compact, Wide-Format Document Scanning

   View on Amazon

   The Plustek S30 delivers reliable wide-format scanning in a space-efficient package, making it well-suited for small offices or design studios needing to digitize blueprints up to 12 inches wide. Unlike the Colortrac SmartLF, which offers larger widths for bigger projects, the S30’s compact form factor is ideal for environments with limited space. Its automatic size detection and job presets simplify workflow, though details about resolution and speed are sparse, which could be limiting for high-detail or fast turnaround tasks. This model is a good choice for users who prioritize space-saving design and versatility within a 12-inch width limit.

   Pros:

   • Handles a variety of document types and sizes up to 12 inches
   • Automatic size detection and blank page removal streamline workflows
   • Space-saving design with upright storage option

   Cons:

   • Lacks detailed info on resolution and scanning speed
   • Connectivity options are not specified, which could hinder integration

   Best for: Small design firms or offices needing compact, wide-format document handling

   Not ideal for: Large-scale printing or scanning of documents wider than 12 inches

   • Maximum Document Width:12 inches
   • Supported Document Types:Blueprints, plans, drawings, purchase orders
   • Automatic Paper Detection:Yes
   • Dimensions:Approximately 4 inches wider than standard scanners
   Our verdict

   “Ideal for small offices needing a compact, versatile scanner for blueprints and engineering drawings up to 12 inches wide.”

   → See it on Amazon →

3. VIISAN Large Format Book & Document Scanner, A2/A3 Capture, 26MP USB Document Camera with Auto-Flatten and OCR



   Best for High-Resolution, Detailed Capture of Large Documents and Books

   View on Amazon

   The VIISAN S21 excels in capturing highly detailed images with its 26MP sensor, making it a top choice for scanning large-format books, maps, or complex drawings. Its auto-flattening and finger removal features help produce clean, usable digital copies, a notable upgrade over lower-resolution options like the Plustek OpticPro A320L. The addition of OCR support makes it suitable for converting scans into editable files, although its compatibility is limited to x64 architectures and not ARM-based devices, which could restrict use for some users. This model is best for professionals needing precise, high-res digital reproductions of large, flat items or books.

   Pros:

   • High-resolution 26MP imaging captures fine details
   • Auto-flattening and finger removal improve scan quality
   • Supports OCR for searchable, editable files

   Cons:

   • Limited compatibility to x64 and x86 architectures only
   • LED lights may be unsuitable in very bright environments

   Best for: Professionals digitizing large-format books, maps, or detailed drawings requiring high resolution

   Not ideal for: Users needing quick scans or those working on ARM-based devices like Surface Pro X

   • Capture Size:A2/A3
   • Resolution:26MP (5888 × 4522 pixels)
   • Supported DPI:up to 600 DPI
   • Compatibility:Windows & macOS (x64 and x86 only)
   • LED Light:3-Level adjustable brightness
   • Foldable Hinge:Yes
   Our verdict

   “This scanner is best suited for detailed, high-resolution captures of large-format flat documents and books, with some software architecture restrictions.”

   → See it on Amazon →

4. Colortrac SmartLF 36-inch Wide Format Scanner



   Best for Large-Scale, High-Quality Color Archiving

   View on Amazon

   The Colortrac SmartLF offers an expansive 36-inch wide scanning width, making it ideal for large engineering plans, architectural drawings, and high-quality color archiving projects. Compared to the smaller VIISAN VF3240, it prioritizes size and color fidelity over resolution specifics, which are not detailed but expected to meet professional standards. Its broad width ensures coverage of very large documents in a single pass, though the lack of specific specs and potential high cost might limit accessibility for smaller firms or occasional users. This model suits professionals who need to digitize large, detailed color documents efficiently.

   Pros:

   • Massive 36-inch wide scanning capability
   • High-quality color imaging suitable for professional archiving
   • Designed for large-format, detailed document handling

   Cons:

   • Limited detailed technical specifications provided
   • Potentially high purchase and maintenance costs

   Best for: Architects, engineers, or large design firms needing high-quality, large-format color scans

   Not ideal for: Small offices or users with limited budgets requiring less than 36 inches of width

   • Scan Width:36 inches
   • Color Support:High-quality color
   • Intended Use:Professional large-format archiving
   Our verdict

   “This scanner is tailored for large-scale, high-resolution color archiving of enormous documents, with a premium price tag.”

   → See it on Amazon →

5. Plustek OpticPro A320L Large Format Flatbed Scanner – 1600 dpi Optical



   Best for Detailed, Wide-Format Flat Document Scanning

   View on Amazon

   The Plustek OpticPro A320L offers a solid option for those needing to scan large, flat documents like maps, drawings, or bound books at up to 1600 dpi. Its CCD sensor ensures high-quality, detailed images, surpassing the resolution of basic flatbed scanners but falling short of ultra-high-res models like the VIISAN S21. Its compatibility with Windows, Mac, and Linux broadens usability, yet the absence of wireless or network features might hinder workflow efficiency in collaborative settings. This model makes the most sense for users who require reliable, high-quality flat scans within the A3 format, especially when detail and color fidelity are priorities.

   Pros:

   • Large scan area suitable for wide-format documents
   • High-quality 1600 dpi resolution with CCD sensor
   • Supports multiple file formats and OCR for searchable documents

   Cons:

   • Requires 64-bit OS for Windows compatibility
   • No wireless or network scanning options

   Best for: Designers or archivists needing detailed, large flat document scans across multiple OS

   Not ideal for: High-volume scanning or projects requiring 26MP resolution or larger formats like A2

   • Scan Area:12 x 17 inches
   • Optical Resolution:1600 dpi
   • Sensor:Sony ILX560K CCD
   • Supported OS:Windows 7/8/10/11, Mac OS X, Linux
   Our verdict

   “Ideal for detailed, high-resolution flat document scans across diverse operating systems, with some limitations on speed and connectivity.”

   → See it on Amazon →

6. CZUR ET MAX Professional Book & Document Scanner, 38MP Document Camera



   Best for High-Resolution Digital Archiving and Detailed Document Capture

   View on Amazon

   The CZUR ET MAX stands out for its impressive 38MP CMOS sensor, making it an excellent choice for industrial designers seeking ultra-detailed scans of large-format blueprints, unlike the Plustek S30 which is limited to smaller A3 scans. Its automatic curve-flattening technology helps produce distortion-free images of bound or curved materials, which is a step above typical flatbed solutions. The inclusion of OCR supporting over 180 languages adds versatility for digital editing and archiving. However, this scanner struggles with glossy or reflective surfaces, and its processing requirements mean it’s less suitable for users with older or less powerful systems. Compared to specialized wide-format scanners like the Colortrac SmartLF, the ET MAX offers higher detail for smaller documents but cannot handle 36-inch wide formats. It’s perfect for professionals who prioritize detailed digital copies of blueprints or documents up to A3, but it isn’t ideal for scanning large-scale drawings or CAD files directly.

   Pros:

   • High-resolution 38MP sensor captures incredible detail for precise digital reproductions
   • Automatic curve-flattening technology simplifies digitizing bound or warped documents
   • Supports OCR in over 180 languages, facilitating searchable and editable files
   • Fast scanning speed of 1.5 seconds per page enhances workflow efficiency

   Cons:

   • Limited to documents and books up to A3 size, not suitable for large blueprints
   • Less effective on glossy or reflective surfaces, which may cause glare or distortions

   Best for: Industrial designers and archivists needing high-resolution images of blueprints, sketches, or detailed documents up to A3 size.

   Not ideal for: Designers or firms requiring large-format scanning of 36-inch or larger blueprints or CAD drawings, as this scanner maxes out at A3 size and is not built for wide-format needs.

   • Scanner Type:Book, Document
   • Connection Type:USB
   • Resolution:7168 × 5376
   • Color Depth:24 bits per pixel
   • Optical Sensor Technology:CMOS
   • Supported Operating Systems:Windows, macOS, Linux (Ubuntu 20.04 to 24.04)
   Our verdict

   “This scanner is ideal for professionals who need detailed digital images of small to medium documents and value high resolution over wide-format capacity.”

   → See it on Amazon →

How We Picked

These scanners were selected based on their ability to handle large-format blueprints with high resolution, speed, and reliability. We evaluated performance metrics such as scan speed and DPI, as well as usability features like auto-flattening and OCR capabilities. Build quality and compatibility with design software also played a role, alongside value considerations for different budgets. The ranking reflects a balance of professional-grade features and practical usability, aiming to help industrial designers find options that match their specific workflow requirements.

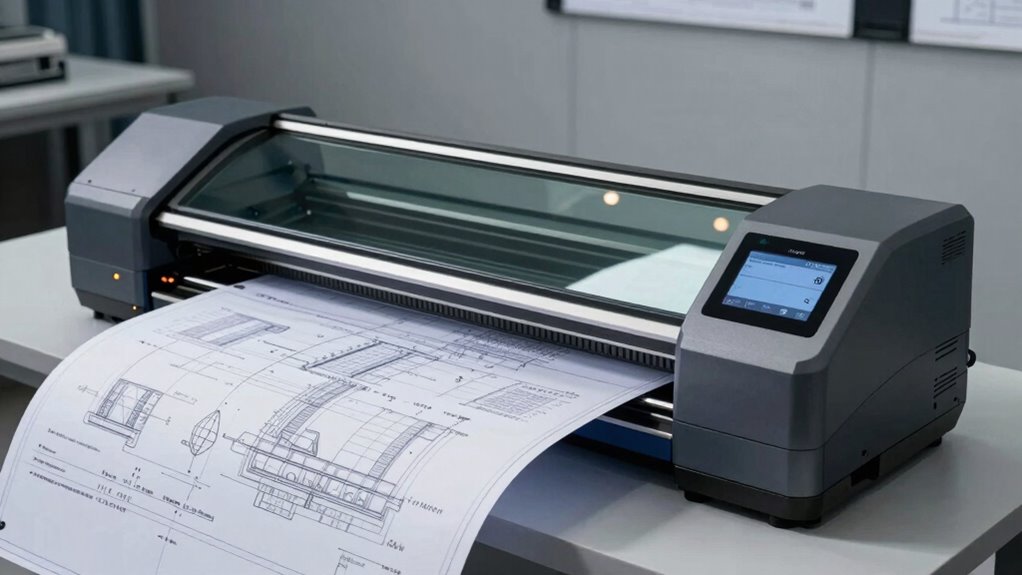

Factors to Consider When Choosing Wide Format Blueprint Scanner For Industrial Designers

Choosing the right wide format blueprint scanner involves understanding several key factors that impact daily workflow and long-term usability. Industrial designers should prioritize resolution for detailed drawings, but also consider speed for efficiency during large projects. Compatibility with existing CAD or design software, as well as ease of use, can significantly influence productivity. Price versus feature set is another critical balance, especially when investing in equipment that will be used extensively. This guide covers the main considerations to help you avoid common pitfalls and select a scanner that aligns with your project needs.

Scan Resolution and Quality

Higher DPI settings yield more detailed scans, which are essential for precise design work. Models like the VIISAN A2/A3 and CZUR ET MAX excel in capturing fine details, making them suitable for complex blueprints and CAD drawings. However, higher resolution scans typically take longer and generate larger files, so consider your storage and workflow speed. For quick review and less detailed documentation, lower DPI settings may suffice, but always ensure they meet your project accuracy standards.

Scan Speed and Workflow Efficiency

Speed is a critical factor when handling large volumes of blueprints. The VIISAN VF3240 offers a 4-second scan for A3 documents, significantly reducing turnaround times, which benefits busy design studios. Flatbed models like the Plustek OpticPro tend to be slower but provide better quality for fragile or irregularly sized documents. Balance your need for rapid throughput against the importance of detail and the types of documents you regularly scan.

Size and Format Compatibility

Ensure the scanner can handle the maximum size of your blueprints—36 inches is common for large-format plans, but some applications may require even wider capabilities. The Colortrac models support 36-inch wide scans, ideal for professional engineering drawings, while smaller models like Plustek S30 are better for tabloid or A3 documents. Check your typical project sizes to avoid investing in equipment that’s either too limited or unnecessarily large and expensive.

Ease of Use and Software Integration

Intuitive interfaces and reliable software integration streamline daily tasks, especially for users who aren’t scanning experts. Flatbed scanners like the Plustek OpticPro are simpler to operate, but document cameras like the CZUR ET MAX offer versatile capturing options suitable for various document types. Compatibility with CAD, OCR, and cloud storage options enhances workflow flexibility. Avoid models with overly complex interfaces if your team prioritizes speed and simplicity.

Price, Maintenance, and Longevity

Higher-end scanners generally come with better build quality, durability, and maintenance support, which can justify the investment for professional studios. Budget models may require more frequent calibration or repairs, affecting long-term costs. Consider the total cost of ownership—initial purchase price, consumables, software updates, and potential repairs—when making your decision. Investing in a reliable, well-supported model pays off through consistent performance and lower downtime.

Frequently Asked Questions

Can I use a wide format blueprint scanner for both physical and digital blueprints?

Yes, most wide format scanners are designed to digitize physical blueprints, making them accessible for digital workflows. Flatbed models excel at capturing fragile or irregular documents, while large-format sheet scanners provide quick, high-resolution scans of standard blueprints. Some models, like document cameras, add versatility by enabling real-time capture of both digital and physical documents. Always verify the scanner’s maximum document size and resolution to match your typical project needs.

Is higher DPI always better for blueprint scanning?

Higher DPI captures more detailed images, which is beneficial for precise design work or archival purposes. However, it also results in larger files and longer scan times, which can slow down workflows. For most industrial design needs, 2000 DPI offers excellent detail, but if your projects demand ultra-fine precision, opting for even higher settings might be worthwhile. Conversely, for quick review scans, lower DPI settings can improve efficiency without sacrificing essential detail.

What should I consider regarding maintenance and durability when choosing a scanner?

Durability and ease of maintenance are vital for equipment used daily in professional settings. Models with high build quality and accessible service options tend to have longer lifespans and lower downtime. Flatbed scanners usually require minimal maintenance, mainly cleaning glass surfaces, while large-format sheet scanners may need calibration and occasional parts replacement. Investing in reputable brands with strong support networks helps ensure your scanner remains reliable over years of use.

Are document cameras a good alternative to traditional flatbed or sheet scanners?

Document cameras provide versatile, real-time capturing of blueprints, especially useful for irregular or fragile documents. They are often faster for quick digitization and can handle a variety of sizes without needing to feed through a flatbed. However, they may not match the resolution or consistency of dedicated scanners, especially for detailed CAD drawings. They are best suited as supplementary tools or for specific workflows where flexibility outweighs the need for ultra-high detail.

How much should I expect to spend on a quality wide format blueprint scanner?

Prices vary widely based on size, resolution, speed, and features. Entry-level models for smaller projects can start around $2,000, while professional-grade scanners with 36-inch capability and high DPI can cost over $10,000. Consider your project volume, required detail, and long-term reliability when budgeting. Investing a bit more upfront usually pays off through better durability and performance, especially if your work demands frequent, high-quality scans.

Conclusion

For industrial designers seeking a reliable all-around performer, the VIISAN VF3240 offers excellent speed and high resolution, making it the best overall choice. Those working with large-format engineering plans or detailed blueprints may prefer the Colortrac SmartLF or VIISAN A2/A3 models for their wide format capabilities. Budget-conscious users or smaller studios benefit from the Plustek S30 or Plustek OpticPro, which provide good value without sacrificing core features. Beginners should consider flatbed or document camera options for simplicity, while professionals demanding top-tier performance should look at premium models with high DPI and robust build quality. Tailor your choice based on your typical project size, required detail, and workflow priorities.
