In 2026, I recommend 15 top-rated desktop CNC machines perfect for PCB prototyping. These include beginner-friendly models like the Genmitsu Cubiko with laser, the versatile CNC Router 4040 PRO, and precise options like the RATTMMOTOR CNC-3018-PRO MAX. Each offers strong software support, safety features, and high accuracy for working with copper, PCB substrates, and soft metals. If you’re curious about the best options for your project, you’ll find more details ahead.
Key Takeaways
- Compact, beginner-friendly CNC machines like the Genmitsu Cubiko and 3018 series are ideal for PCB prototyping.
- Mid-range models such as CNC Router 4040 PRO and Artsian 01 offer higher precision and support for diverse materials.
- Machines with high-speed spindles (10,000-12,000 RPM) enable detailed PCB engraving and milling.
- Safety features, user-friendly software, and offline operation are crucial for efficient PCB prototyping workflows.
- Compatibility with CAD/CAM software and advanced features like auto-tool height adjustment enhance PCB fabrication accuracy.
| Genmitsu Cubiko CNC Router with Laser Module |  | All-in-One Powerhouse | Work Area: Not specified | Spindle Power: 5000mW laser (laser module included) | Control System: Genmitsu App, Fusion 360, Easel, Candle, Carveco | VIEW LATEST PRICE | See Our Full Breakdown |
| CNCTOPBAOS 1610 PRO CNC Milling Machine Kit |  | Versatile DIY | Work Area: 7.08 x 3.93 x 1.77 inches | Spindle Power: 45mm, 10,000 RPM spindle | Control System: Offline controller, SD card, GRBL software | VIEW LATEST PRICE | See Our Full Breakdown |
| CNC Router 4040 PRO 3-Axis 100W Engraving Machine |  | High Precision | Work Area: 400 x 400 x 83 mm | Spindle Power: 100W spindle (0-10,000 RPM) | Control System: USB, GRBL/Candle software | VIEW LATEST PRICE | See Our Full Breakdown |
| Genmitsu 3020-PRO CNC Router with Upgraded Spindle |  | Upgraded Performance | Work Area: Not specified | Spindle Power: 710W spindle (6500-30000 RPM) | Control System: USB, compatible with GRBL | VIEW LATEST PRICE | See Our Full Breakdown |
| Carvera Air Desktop CNC Machine with 4th Axis |  | Feature-Rich | Work Area: 10.18 sq. inches (approx. 2.6 x 3.9 inches) | Spindle Power: 500W spindle (0-13,000 RPM) | Control System: WiFi, USB, software support (e.g., Lightburn, Fusion) | VIEW LATEST PRICE | See Our Full Breakdown |
| 3018 CNC Router Machine with 3-Axis Metal Frame |  | Compact Efficiency | Work Area: 300 x 180 x 40 mm | Spindle Power: 775 motor (7000-9000 RPM) | Control System: USB, offline control via SD card | VIEW LATEST PRICE | See Our Full Breakdown |
| RATTMMOTOR 3018-PRO CNC Router Kit with Controller |  | Beginner Friendly | Work Area: 18 x 10 x 4.5 cm | Spindle Power: 775 spindle (10,000 RPM) | Control System: USB, GRBL, offline SD/TF card | VIEW LATEST PRICE | See Our Full Breakdown |
| Genmitsu 3018-PROVer V2 CNC Milling Machine |  | High-Speed Accuracy | Work Area: 284 x 180 x 40 mm | Spindle Power: 710W spindle (6,500-30,000 RPM) | Control System: USB, compatible with CAD/CAM software | VIEW LATEST PRICE | See Our Full Breakdown |
| Artsian 01 CNC Router Machine with 300W Spindle |  | Ultra-High Precision | Work Area: Not specified | Spindle Power: 12,000 RPM spindle (high-power) | Control System: 4AXIS Controller, software limits | VIEW LATEST PRICE | See Our Full Breakdown |
| WIZMAKER Artsian 01 CNC Router Engraver |  | Advanced Capabilities | Work Area: Not specified | Spindle Power: 775 spindle (7000-9000 RPM) | Control System: Offline handwheel, WiFi, GRBL | VIEW LATEST PRICE | See Our Full Breakdown |
| SainSmart Genmitsu 3020-PRO CNC Router with 710W Spindle |  | Easy Assembly | Work Area: 18 x 10 x 4.5 cm | Spindle Power: 775 spindle (up to 20,000 RPM) | Control System: Offline SD/TF card, GRBL | VIEW LATEST PRICE | See Our Full Breakdown |
| AnoleX CNC Router 4030-Evo Ultra 2 with 800W Router |  | Professional-Grade | Work Area: Not specified | Spindle Power: 800W spindle (8000-24000 RPM) | Control System: USB, WiFi, compatible with UGS, Fusion | VIEW LATEST PRICE | See Our Full Breakdown |
| Axiscreat 4040 CNC Router with Precision Ball Screw |  | Heavy-Duty Precision | Work Area: Not specified | Spindle Power: 710W trim router (6000-30000 RPM) | Control System: USB, compatible with FluidNC, GRBL | VIEW LATEST PRICE | See Our Full Breakdown |
| RATTMMOTOR CNC-3018-PRO MAX 3-Axis CNC Router Kit |  | Robust Engineering | Work Area: 11.8 x 7.1 x 1.8 inches | Spindle Power: 775 spindle (up to 20,000 RPM) | Control System: USB, offline SD/TF card | VIEW LATEST PRICE | See Our Full Breakdown |
| TTC3018 CNC Router with WiFi & 775 Spindle |  | Smart Connectivity | Work Area: 300 x 180 x 40 mm | Spindle Power: 775 spindle (7000-9000 RPM) | Control System: USB, GRBL, WiFi supported | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
CNCTOPBAOS 1610 PRO CNC Milling Machine,with GRBL Offline Controller,3 Axis Desktop DIY Mini CNC Router Kit Engrave Carving PVC,PCB,Acrylic,Wood Cutting Engraving Machine CNC1610 Pro
Model: Upgrade Version 1610 Pro; With White Offline Controller,you can operate this machine without connect to the computer;...
As an affiliate, we earn on qualifying purchases.

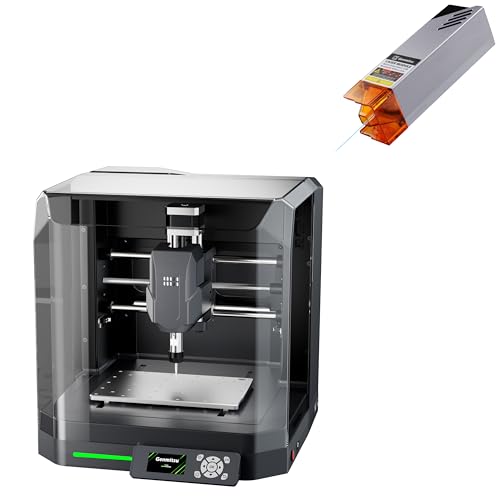

Genmitsu Cubiko CNC Router with Laser Module
If you’re looking for a desktop CNC machine that’s easy to set up and versatile enough for PCB prototyping, the Genmitsu Cubiko CNC Router with Laser Module is an excellent choice. It arrives ready to use, with no assembly needed, and works seamlessly with software like Fusion 360, Easel, Candle, and Carveco. The integrated 5000mW laser provides high precision, capable of cutting through 8mm plywood in a single pass. Its safety enclosure and auto-stop feature keep you protected, while automatic tool height adjustment simplifies setup. With step-by-step tutorials and remote connectivity, this machine makes PCB prototyping accessible for beginners and experienced users alike.
- Work Area:Not specified
- Spindle Power:5000mW laser (laser module included)
- Control System:Genmitsu App, Fusion 360, Easel, Candle, Carveco
- Connectivity:WiFi, App control
- Material Compatibility:Wood, acrylic, metal (laser cutting)
- Assembly/Pre-assembly:Ready to run, no assembly
- Additional Feature:WiFi and app control
- Additional Feature:Auto tool height adjustment
- Additional Feature:Dust and heat dissipation upgrade
-
CNC Router Machine 4040 PRO, 3-Axis 100W Desktop CNC Engraving Milling Machine with USB, 400x400mm Aluminum Frame CNC Engraver Cutter, for Wood, Metal, Acrylic, MDF, PCB, Art Design, Education Use
【Premium Material】: The engraving machine with an aluminum frame and wood panel workbench is corrosion-resistant and strong, having...
As an affiliate, we earn on qualifying purchases.
CNCTOPBAOS 1610 PRO CNC Milling Machine Kit
Looking for an affordable, compact CNC machine that can handle PCB prototyping and small-scale engraving projects? The CNCTOPBAOS 1610 PRO CNC Milling Machine Kit fits the bill perfectly. It features a 3-axis DIY router with an offline controller and SD card support, allowing operation without a computer. With a working area of about 7 x 4 inches, it can engrave plastics, wood, acrylic, PVC, and soft metals like copper and aluminum. Its upgraded GRBL control board, 10,000 RPM spindle, and safety features make it versatile and user-friendly. Overall, it’s an excellent choice for hobbyists and small-scale manufacturers seeking precision on a budget.
- Work Area:7.08 x 3.93 x 1.77 inches
- Spindle Power:45mm, 10,000 RPM spindle
- Control System:Offline controller, SD card, GRBL software
- Connectivity:WiFi (optional), SD card
- Material Compatibility:Plastics, wood, acrylic, PVC, PCB, soft metals
- Assembly/Pre-assembly:Fully assembled, plug-and-play
- Additional Feature:Offline controller included
- Additional Feature:Adjustable spindle speeds
- Additional Feature:Compatible with multiple file types
-
Genmitsu 3020-PRO Ultra CNC Router Machine, Upgraded 710W Spindle, All-Metal Engraver for Metal, Wood, Acrylic, PCB, MDF, Built-in Motherboard Fan, Work Area 11.8"x8.1"x3.1"
710W Spindle: Whether you're working with solid wood, metal, acrylic, carbon fiber, soft titanium, or more, the upgraded...
As an affiliate, we earn on qualifying purchases.
CNC Router 4040 PRO 3-Axis 100W Engraving Machine
The CNC Router 4040 PRO stands out as an excellent choice for hobbyists and small-scale professionals seeking precise PCB prototyping. Its aluminum frame and corrosion-resistant construction guarantee durability and long-lasting performance. The 400x400x83mm work area is perfect for most projects, while the 100W spindle with up to 10,000 RPM provides high-speed, accurate engraving. Equipped with a 42-stepper motor system and a radial runout of ≤ 0.05mm, it guarantees precision. Easy to operate via USB with GRBL/Candle software, safety features like emergency stop and limit switches make it reliable for various applications, from DIY art to PCB fabrication.
- Work Area:400 x 400 x 83 mm
- Spindle Power:100W spindle (0-10,000 RPM)
- Control System:USB, GRBL/Candle software
- Connectivity:USB, SD card
- Material Compatibility:Wood, plastics, aluminum, copper, PCB
- Assembly/Pre-assembly:Pre-assembled, minimal setup
- Additional Feature:Air-cooled spindle motor
- Additional Feature:83mm spindle height
- Additional Feature:Suitable for educational use
Genmitsu 3020-PRO CNC Router with Upgraded Spindle
The Genmitsu 3020-PRO CNC Router with an upgraded 710W spindle is an excellent choice for anyone aiming to prototype PCBs and small-scale projects with high precision and durability. Its all-metal construction offers enhanced stability, while dual linear rails and lead screws on the X-axis, along with a reinforced backplate, ensure accurate, stable operation. The powerful spindle, adjustable from 6,500 to 30,000 RPM, can cut through materials like metal, wood, and acrylic efficiently. With high-torque stepper motors and deep cutting capacity, it delivers reliable, detailed results. Its modular design and integrated cooling system make setup straightforward and safe, perfect for versatile, professional-grade PCB prototyping.
- Work Area:Not specified
- Spindle Power:710W spindle (6500-30000 RPM)
- Control System:USB, compatible with GRBL
- Connectivity:USB, no WiFi explicitly
- Material Compatibility:Metal, wood, acrylic, carbon fiber, soft titanium
- Assembly/Pre-assembly:Modular, easy assembly
- Additional Feature:Dual linear rails
- Additional Feature:Adjustable spindle speed
- Additional Feature:Power supply integrated
Carvera Air Desktop CNC Machine with 4th Axis
For hobbyists and small-scale professionals seeking precise and versatile milling capabilities, the Carvera Air Desktop CNC Machine with 4th axis is an excellent choice. It offers accurate carving, engraving, and milling across materials like wood, plastics, and metals, supported by user-friendly software and all-in-one CAM. The optional 4th axis expands creative potential, enabling cylindrical machining and complex 3D shapes. Quick tool changes, auto probing, and leveling guarantee efficiency and accuracy. Its compact design, weighing about 45 kg, fits easily on a workspace while maintaining high precision with a spindle control up to 13,000 RPM. Overall, it’s a reliable, flexible machine for detailed prototyping.
- Work Area:10.18 sq. inches (approx. 2.6 x 3.9 inches)
- Spindle Power:500W spindle (0-13,000 RPM)
- Control System:WiFi, USB, software support (e.g., Lightburn, Fusion)
- Connectivity:WiFi, USB
- Material Compatibility:Plastic, wood, aluminum, PCB, metal
- Assembly/Pre-assembly:95% pre-assembled
- Additional Feature:Optional 4th rotary axis
- Additional Feature:Auto probing and leveling
- Additional Feature:Quick tool changer
3018 CNC Router Machine with 3-Axis Metal Frame
If you’re looking for a compact and reliable CNC router to handle PCB prototyping, the 3018 CNC Router Machine with a 3-axis metal frame is an excellent choice. Its all-metal build guarantees durability and stability, while its small footprint makes it perfect for home or small workshop use. With a 420x355x280mm size and a 300x180x40mm engraving area, it’s versatile enough for various projects. Powered by a 32-bit STM32 processor, it offers precise engraving at 0.1mm and speeds up to 1500mm/min. Easy to operate with pre-assembled components, it supports multiple software options and offline control, making it ideal for both beginners and experienced makers.
- Work Area:300 x 180 x 40 mm
- Spindle Power:775 motor (7000-9000 RPM)
- Control System:USB, offline control via SD card
- Connectivity:USB, offline (SD/TF)
- Material Compatibility:Wood, plastic, acrylic, PVC, PCB, soft metals
- Assembly/Pre-assembly:Pre-assembled, easy setup
- Additional Feature:775 brushed motor
- Additional Feature:Offline control via SD card
- Additional Feature:Compatible with multiple software
RATTMMOTOR 3018-PRO CNC Router Kit with Controller
Designed with DIY enthusiasts and beginners in mind, the RATTMMOTOR 3018-PRO CNC Router Kit offers precise control and easy assembly, making it an ideal choice for PCB prototyping. Its sturdy aluminum alloy frame measures 42x35x27cm, with an 18x10x4.5cm working area, and features a powerful 775 spindle motor up to 24V and 10,000 RPM. It can engrave materials like wood, plastic, acrylic, PCB, and soft metals such as copper and aluminum. The kit is simple to set up, with a user-friendly manual, and includes safety features like limit switches and emergency stop. Plus, offline operation through SD/TF cards adds convenience.
- Work Area:18 x 10 x 4.5 cm
- Spindle Power:775 spindle (10,000 RPM)
- Control System:USB, GRBL, offline SD/TF card
- Connectivity:SD/TF card, USB
- Material Compatibility:Wood, plastic, acrylic, aluminum, PCB
- Assembly/Pre-assembly:Pre-assembled, quick setup
- Additional Feature:Silent fan cooling
- Additional Feature:Limit switch support
- Additional Feature:High spindle speed up to 20,000 RPM
Genmitsu 3018-PROVer V2 CNC Milling Machine
The Genmitsu 3018-PROVer V2 CNC Milling Machine stands out as an ideal choice for beginners venturing into PCB prototyping, thanks to its straightforward assembly and compact design. With a working area of 284 x 180 x 40mm, it’s perfect for small projects. Made mainly from durable aluminum, it offers enhanced precision through upgraded components like a redesigned Z-axis carriage and an aluminum spoilboard. It features quiet Toshiba TB6S109 drivers, safety upgrades such as a limit switch and emergency stop, and is compatible with user-friendly CAD/CAM software. Weighing about 20 pounds, it’s reliable, easy to use, and backed by strong customer support.
- Work Area:284 x 180 x 40 mm
- Spindle Power:710W spindle (6,500-30,000 RPM)
- Control System:USB, compatible with CAD/CAM software
- Connectivity:USB, optional WiFi
- Material Compatibility:Wood, plastic, aluminum, acrylic, PCB, soft metals
- Assembly/Pre-assembly:Semi-assembled, quick start
- Additional Feature:Upgraded Z-axis carriage
- Additional Feature:32-bit drivers for quiet operation
- Additional Feature:Semi-preassembled design
Artsian 01 CNC Router Machine with 300W Spindle
For hobbyists and professionals alike who need high precision in PCB prototyping, the Artsian 01 CNC Router Machine with a 300W spindle is a standout choice. It delivers ultra-high accuracy with a repeat positioning of 0.01mm and machining within ±0.1mm, ensuring detailed and consistent results. Its smooth operation prevents step loss and vibration, while the high-strength linear guide rails and dual-nut lead screws support engraving speeds up to 2000mm/min. With an advanced 4AXIS Controller, support for multiple materials, and quick setup—just 10 minutes—it’s perfect for versatile, precise PCB prototyping and small-scale manufacturing.
- Work Area:Not specified
- Spindle Power:12,000 RPM spindle (high-power)
- Control System:4AXIS Controller, software limits
- Connectivity:WiFi, USB
- Material Compatibility:Plastic, aluminum, brass, wood, PCB
- Assembly/Pre-assembly:Pre-assembled, quick setup
- Additional Feature:4-axis linkage support
- Additional Feature:High repeat accuracy
- Additional Feature:Industrial-grade control system
WIZMAKER Artsian 01 CNC Router Engraver
If you’re looking for a versatile desktop CNC machine capable of precise PCB prototyping, the Wizmaker Artsian 01 is an excellent choice. It features an advanced 4-Axis Intelligent Control System supporting continuous 24/7 operation, with safety features like software limits and four-point centering. Built with high-strength linear guides and dual-nut lead screws, it assures stability and accuracy, achieving 0.01mm repeatability. Its high-power 500W spindle handles plastics, metals, and PCBs effortlessly, with speeds up to 12,000 RPM. Designed for quick setup and easy switching between CNC and laser modes, it’s perfect for hobbyists and professionals seeking precision and versatility.
- Work Area:Not specified
- Spindle Power:775 spindle (7000-9000 RPM)
- Control System:Offline handwheel, WiFi, GRBL
- Connectivity:WiFi, USB
- Material Compatibility:Wood, plastics, aluminum, PCB, metal
- Assembly/Pre-assembly:Pre-assembled, ready to use
- Additional Feature:4th axis support
- Additional Feature:Stepless spindle speed
- Additional Feature:Handwheel for manual control
SainSmart Genmitsu 3020-PRO CNC Router with 710W Spindle
With its powerful 710W spindle and solid all-metal construction, the SainSmart Genmitsu 3020-PRO CNC Router is an excellent choice for those looking to prototype PCBs and other small to medium projects with precision. Its robust aluminum frame, including a 4040 Y-axis profile and reinforced backplate, offers stability during machining. The machine supports deep cuts in materials like aluminum, thanks to its high-torque stepper motors and adjustable spindle speeds from 6,500 to 30,000 RPM. Versatile and compatible, it easily switches between spindles and laser modules, making it suitable for engraving, milling, and carving on various materials.
- Work Area:18 x 10 x 4.5 cm
- Spindle Power:775 spindle (up to 20,000 RPM)
- Control System:Offline SD/TF card, GRBL
- Connectivity:SD/TF card, USB
- Material Compatibility:Wood, plastic, acrylic, PCB, aluminum, copper
- Assembly/Pre-assembly:Pre-assembled, easy to set up
- Additional Feature:All-metal construction
- Additional Feature:Deep cut capability
- Additional Feature:Expandable spindle options
AnoleX CNC Router 4030-Evo Ultra 2 with 800W Router
The AnoleX CNC Router 4030-Evo Ultra 2 stands out as an excellent choice for hobbyists and small-scale professionals who need precise PCB prototyping capabilities. Its all-metal XYZ axes with dual steel linear guides and 1204 ball screws guarantee high accuracy and rigidity. Powered by an 800W trim router with variable speeds up to 24,000 RPM, it handles metals, wood, and plastics effortlessly. Features like laser engraving, coolant control, and WiFi connectivity add versatility. Built from durable aluminum and pre-assembled for easy setup, this machine offers a reliable, powerful, and user-friendly solution for detailed PCB work and small manufacturing projects.
- Work Area:Not specified
- Spindle Power:800W spindle (8000-24000 RPM)
- Control System:USB, WiFi, compatible with UGS, Fusion
- Connectivity:WiFi, USB
- Material Compatibility:Metal, plastic, wood, acrylic, PCB
- Assembly/Pre-assembly:Pre-assembled, quick setup
- Additional Feature:WiFi control via ESP3D
- Additional Feature:Laser engraving support
- Additional Feature:3-pin touch probe
Axiscreat 4040 CNC Router with Precision Ball Screw
The Axiscreat 4040 CNC Router with Precision Ball Screw stands out as an excellent choice for professionals and advanced hobbyists who require high-precision metal engraving capabilities. It can machine 2mm aluminum and other materials with remarkable accuracy, reaching ±0.005mm. Its dual-layer work area, made of aluminum alloy and MDF, minimizes wear and boosts durability. Equipped with a 710W upgraded router and six adjustable speeds, it handles engraving and cutting metals like aluminum, copper, and acrylics. Rapid, precise stepper motors and dual linear guides guarantee accuracy and stability, making this machine a reliable tool for demanding projects.
- Work Area:Not specified
- Spindle Power:710W trim router (6000-30000 RPM)
- Control System:USB, compatible with FluidNC, GRBL
- Connectivity:WiFi, USB
- Material Compatibility:Aluminum, wood, plastic, copper
- Assembly/Pre-assembly:Pre-assembled, easy setup
- Additional Feature:Dual linear guide rails
- Additional Feature:2.2 Nm torque motors
- Additional Feature:Open-source firmware support
RATTMMOTOR CNC-3018-PRO MAX 3-Axis CNC Router Kit
Looking for a reliable desktop CNC machine that’s perfect for PCB prototyping and small-scale engraving? The RATTMMOTOR CNC-3018-PRO MAX is an excellent choice. Its sturdy aluminum alloy frame measures 42x35x27cm, with an 18x10x4.5cm working area, ideal for detailed projects. Equipped with a 12-24V 10,000 RPM spindle motor and a 42-stepper motor, it offers precise control across X, Y, and Z axes. It supports engraving on wood, plastic, acrylic, PCB, and even soft metals like copper and aluminum. Easy to assemble and operate, it’s well-suited for DIY enthusiasts and beginners aiming for accurate, durable engravings.
- Work Area:11.8 x 7.1 x 1.8 inches
- Spindle Power:775 spindle (up to 20,000 RPM)
- Control System:USB, offline SD/TF card
- Connectivity:USB, optional WiFi
- Material Compatibility:Wood, plastic, acrylic, PCB, aluminum
- Assembly/Pre-assembly:Fully assembled, ready to operate
- Additional Feature:Precise stainless steel rods
- Additional Feature:Offline control system
- Additional Feature:Support for soft metals
TTC3018 CNC Router with WiFi & 775 Spindle
If you’re seeking a compact, easy-to-use CNC router for PCB prototyping, the TTC3018 with WiFi and a 775 spindle is an excellent choice. It offers 0.1mm engraving accuracy at speeds up to 1500mm/min, making it suitable for various materials like PCBs, plastics, and light metals. Its 3-axis design, combined with a user-friendly interface via USB or TF card, simplifies operation. The machine’s pre-assembled components and clear labeling make setup straightforward, even for beginners. With international safety certifications and 24/7 support, the TTC3018 provides reliable, precise performance for personal, educational, or small-scale manufacturing projects.
- Work Area:300 x 180 x 40 mm
- Spindle Power:775 spindle (7000-9000 RPM)
- Control System:USB, GRBL, WiFi supported
- Connectivity:WiFi, USB
- Material Compatibility:Wood, plastics, aluminum, PCB
- Assembly/Pre-assembly:Pre-assembled, easy setup
- Additional Feature:International safety certifications
- Additional Feature:Quick assembly design
- Additional Feature:Support for dual functions (CNC & laser)
Factors to Consider When Choosing the Top-Rated Desktop CNC for PCB Prototyping for Electronics Prototyping
When choosing a desktop CNC for PCB prototyping, I focus on key factors like precision and accuracy to guarantee detailed work. I also consider material compatibility and software support to match my project needs, along with safety features for secure operation. These points help me select a machine that’s reliable, easy to use, and suited for electronics prototyping.
Precision and Accuracy
Choosing a desktop CNC machine for PCB prototyping hinges on its ability to deliver precise and accurate results. High-precision CNCs can achieve positional accuracy within ±0.005mm, guaranteeing detailed features like traces and vias are reliably produced. Consistent spindle control and stable axis movement are vital for maintaining uniform dimensions across complex layouts. Using closed-loop stepper motors and linear guide rails reduces vibration and step loss, which enhances engraving accuracy. Proper calibration of tool height and machine zero points is essential to sustain dimensional precision throughout the process. Reputable CNC machines incorporate high-resolution encoders and tight manufacturing tolerances, allowing for the reliable fabrication of intricate circuit patterns. These features collectively guarantee your PCB prototypes meet design specifications and function flawlessly.
Material Compatibility Range
Selecting a desktop CNC machine that matches your material needs is vital for successful PCB prototyping. You want a machine that can engrave and cut materials like copper-clad substrates, FR4, and other PCB laminates reliably. It should also handle soft metals such as aluminum and copper, which are common in electronic prototypes. Additionally, check if it can work with plastics like acrylic, POM, and PVC, often used for enclosures and circuit boards. Versatility is key, so verify it supports materials like PCB substrates, thin aluminum sheets, and conductive composites. Equally important is the machine’s ability to process various thicknesses and densities, allowing you to adapt to different prototype designs without hassle. A broad material compatibility range ensures you can prototype efficiently and with greater flexibility.
Software Support Options
Ensuring your desktop CNC machine supports popular CAD/CAM software is vital for smooth design integration and efficient workflow. I look for machines compatible with tools like Fusion 360, Artcam, Easel, or Carveco, as these streamline the design-to-production process. Compatibility with control software such as GRBL, LinuxCNC, or proprietary options guarantees reliable handling of G-code and NC files, minimizing setup issues. I also prioritize machines that offer remote control and monitoring apps via WiFi or Bluetooth, providing flexibility during operation and project management. Additionally, thorough tutorials, software drivers, and firmware updates are essential for adapting to evolving software platforms. Supporting common file formats like G-code, NC, or TXT allows me to work seamlessly across various software tools, making my PCB prototyping more efficient and versatile.
Ease of Assembly
When evaluating desktop CNC machines for PCB prototyping, ease of assembly is a crucial factor that can save you time and frustration. Machines with pre-assembled components and minimal setup steps make installation straightforward, often allowing beginners to get started within 30 minutes. Clear, step-by-step instructions, along with visual guides, simplify the process further. Quick-connect wiring and modular parts help reduce setup time and minimize errors. Designs that eliminate external power boxes or complex tools make assembly less intimidating and more efficient. Many user-friendly CNC kits come with detailed manuals, online tutorials, or video guides, ensuring all skill levels can assemble their machines confidently. Prioritizing ease of assembly ensures you spend more time on actual prototyping rather than troubleshooting setup issues.
Safety Features Included
Safety features are essential components to contemplate when choosing a desktop CNC machine for PCB prototyping, as they directly impact user protection and operational reliability. Many top-rated models include safety enclosures that contain dust, debris, and fumes, keeping the workspace clean and safe. Auto-stop functions and cover-open detection immediately halt operations if safety covers are opened or irregularities are detected, preventing accidents. Emergency stop buttons are standard, allowing quick shutdowns in emergencies. Limit switches and sensors help prevent over-travel, collisions, and damage to the machine or workpiece. Additionally, automated safety protocols like dust extraction and dust protection systems contribute to a safer working environment. These features ensure that the machine operates smoothly while safeguarding the user during complex PCB and electronics prototyping tasks.
Budget and Cost
Choosing the right desktop CNC machine for PCB prototyping largely depends on your budget, as prices can range from under $200 to over $2000 based on features and precision. It’s important to weigh the total cost of ownership, including software, accessories, and maintenance, which impact long-term affordability. Evaluate if the initial investment matches the complexity and scale of your projects to ensure you’re getting good value. Higher-priced machines typically offer better accuracy, stability, and advanced features ideal for detailed electronics work. Conversely, more affordable options may suffice for simpler prototypes but could lack precision or durability. Ultimately, find a balance between cost and performance, avoiding overspending on unnecessary features or underinvesting in critical capabilities that could hinder your project’s quality.
Frequently Asked Questions
Which CNC Machine Offers the Best Precision for PCB Prototyping?
I believe the best precision for PCB prototyping comes from the Shapeoko 4. Its high-quality spindle and rigid aluminum frame allow for detailed, accurate cuts. Plus, the machine’s consistent performance and excellent software compatibility make it a reliable choice. I’ve used it myself, and I can confidently say it delivers the precision needed for complex PCB designs, ensuring professional-quality results every time.
How Does Spindle Power Impact PCB Engraving Quality?
Spindle power greatly impacts PCB engraving quality because a more powerful spindle can handle tougher materials and maintain consistent speed, resulting in cleaner, more precise cuts. When the spindle lacks power, it struggles with dense substrates, causing rough edges or incomplete traces. I’ve found that investing in a CNC with adequate spindle power ensures sharper detail, reduces errors, and produces high-quality prototypes.
Are There Specific Software Compatibility Requirements for These CNCS?
When choosing a CNC, I look for software that flows smoothly with my workflow. Compatibility is key—think of it like a dance where the machine and software move in sync. I prefer programs that support popular formats like G-code, and I often check if the software updates regularly. This guarantees my machine responds seamlessly, making my PCB prototyping process efficient and frustration-free.
What Safety Features Are Included in Top-Rated Desktop CNC Machines?
Top-rated desktop CNC machines often come with safety features like emergency stop buttons, safety enclosures, and automatic shutoff systems. I always check for clear safety instructions and protective covers before starting a project. These features help prevent accidents and guarantee safe operation, especially in compact workspaces. I recommend choosing a machine with these safety options to keep your workspace secure and to work confidently on your PCB prototypes.
How Easy Is It to Upgrade or Modify These CNC Machines Later?
Upgrading or modifying these CNC machines is usually straightforward, especially if you choose models designed with user customization in mind. I’ve found that many come with accessible parts and clear documentation, making upgrades like adding new tools or improving software easier. However, I recommend checking each machine’s upgrade options beforehand, as some models are more flexible than others, ensuring you can evolve your setup as your skills and projects grow.
Conclusion
Choosing the right desktop CNC for PCB prototyping really depends on your needs—it’s funny how each of these machines seems to fit a different kind of project. Whether you prefer precision, versatility, or just a reliable starter, there’s a perfect match out there. I’ve noticed how the right choice often surprises people, turning everyday makers into tech innovators. So, trust your instincts, and you might just find the perfect machine where you least expect it.
