If you’re looking for the best arbitrary waveform generators for engineering classrooms in 2026, I can help. These devices offer a range of frequencies, high sampling rates, and excellent waveform quality, making them perfect for teaching and research. They feature intuitive interfaces and versatile functions like modulation and multi-channel output. Whether you need budget-friendly options or advanced models, there’s something for every educational need. Keep exploring to find out which models stand out and why.
Key Takeaways
- Highlights top waveform generators with high frequency range (30-70MHz), high sampling rates, and 14-bit resolution suitable for educational use.
- Emphasizes user-friendly interfaces with TFT/LCD displays, touch controls, and portable designs for easy classroom integration.
- Features versatile functions including dual channels, modulation modes, and extensive arbitrary waveform options (150+ waveforms).
- Details measurement capabilities like high-accuracy frequency counters, remote control, and software compatibility for advanced experiments.
- Considers budget-friendly, compact models balancing performance and affordability for effective teaching and practical lab applications.
| Signal Generator DGE2070 70MHz Dual Channel 300MS/s |  | Professional Precision | Number of Channels: Dual-channel | Maximum Frequency Range: 70MHz | Sampling Rate: 300MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| ET3320C Dual-Channel Waveform Generator with LCD |  | User-Friendly Interface | Number of Channels: Dual-channel | Maximum Frequency Range: 20MHz | Sampling Rate: 200MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Goupchn Programmable DDS Signal Generator 60MHz |  | Industrial Versatility | Number of Channels: Dual-channel | Maximum Frequency Range: 60MHz | Sampling Rate: 200MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Koolertron 30MHz DDS Signal Generator & Frequency Meter |  | High-Accuracy Output | Number of Channels: Dual-channel | Maximum Frequency Range: 30MHz | Sampling Rate: 200MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| UNI-T UTG962E Dual-Channel Waveform Generator |  | Compact & Affordable | Number of Channels: Dual-channel | Maximum Frequency Range: Up to 60MHz | Sampling Rate: Not specified (programmable, high precision) | VIEW LATEST PRICE | See Our Full Breakdown |
| OWON XDG2030 2-Channel 30MHz Signal Generator |  | Educational Focus | Number of Channels: Two channels | Maximum Frequency Range: 30MHz | Sampling Rate: 200MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| GSC VFWAVGEN Variable Frequency Wave Generator |  | Advanced Functionality | Number of Channels: Variable (implied dual or more) | Maximum Frequency Range: 400Hz – 4000Hz (demo frequency range) | Sampling Rate: 250MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| OWON AG2062F 2 Channel Arbitrary Waveform Generator with Counter |  | Rich Signal Options | Number of Channels: Two channels | Maximum Frequency Range: 60MHz | Sampling Rate: 500MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| UNI T UTG932E Function Generator with Dual Channels |  | Budget-Friendly Reliability | Number of Channels: Dual-channel | Maximum Frequency Range: 30MHz | Sampling Rate: 200MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
Signal Generator DGE2070 70MHz Dual Channel 300MS/s
The Signal Generator DGE2070 stands out as an excellent choice for educators and students who need precise, versatile waveform generation within a 70 MHz frequency range. I appreciate its dual-channel design, which allows me to generate and compare signals simultaneously. With a 300 MSa/s sample rate and 14-bit resolution, I can create detailed, accurate waveforms for complex testing. Its support for five basic waveforms and 150 arbitrary options offers flexibility for various projects. The device’s intuitive TFT display and shortcut keys make setup quick and straightforward, enhancing classroom efficiency. Overall, the DGE2070 delivers reliable performance for teaching and experimentation.
- Number of Channels:Dual-channel
- Maximum Frequency Range:70MHz
- Sampling Rate:300MS/s
- Waveform Storage / Arbitrary Waveforms:150 built-in, 8K points
- Modulation Capabilities:AM, FM, PM, FSK, sweep, burst
- Display Type:3.6″ TFT LCD
- Additional Feature:Multiple modulation functions supported
- Additional Feature:Utility functions like brightness control
- Additional Feature:USB data transfer capability
ET3320C Dual-Channel Waveform Generator with LCD
If you’re looking for a versatile waveform generator suitable for advanced electronics testing and education, the ET3320C stands out with its dual-channel design and phase synchronization. It can generate precise waveforms up to 20MHz with ultra-low distortion, supporting sine, square, triangle, ramp, DC, and 32 arbitrary waveforms. Its 8K memory and 200MSa/s sampling rate enable detailed signal customization. The device features a 2.4-inch LCD with bilingual menus, making operation intuitive. Additional features like modulation modes, sweep, burst functions, and USB connectivity enhance its flexibility. Overall, the ET3320C is a powerful tool for students and professionals alike, combining precision and ease of use.
- Number of Channels:Dual-channel
- Maximum Frequency Range:20MHz
- Sampling Rate:200MSa/s
- Waveform Storage / Arbitrary Waveforms:32 built-in, 8K points
- Modulation Capabilities:AM, FM, PM, ASK, FSK, PSK
- Display Type:2.4″ TFT LCD
- Additional Feature:Bilingual menu options
- Additional Feature:50 user waveform storage
- Additional Feature:Integrated frequency counter
Goupchn Programmable DDS Signal Generator 60MHz
Engineers and students seeking precise waveform control will find the Goupchn Programmable DDS Signal Generator 60MHz to be an excellent choice, thanks to its dual-channel output and versatile modulation capabilities. It offers a broad 60MHz frequency range and supports multiple waveforms, including sine, square, triangle, and custom arbitrary signals. The device allows programming of sequences with specific durations for automatic operation and can be remotely controlled via a mobile app. External analog signals can modulate frequency, amplitude, and duty cycle, enabling sweeping functions. Compact and lightweight, it’s perfect for laboratory and industrial environments, providing flexible, accurate, and user-friendly waveform generation.
- Number of Channels:Dual-channel
- Maximum Frequency Range:60MHz
- Sampling Rate:200MSa/s
- Waveform Storage / Arbitrary Waveforms:Support for custom sequences, firmware upgradeable
- Modulation Capabilities:External and internal modulation, sweeping
- Display Type:No display specified
- Additional Feature:Remote control via mobile app
- Additional Feature:Firmware upgrade support
- Additional Feature:Voltage-controlled modulation
Koolertron 30MHz DDS Signal Generator & Frequency Meter
For educators and students seeking precise, versatile signal generation, the Koolertron 30MHz DDS Signal Generator & Frequency Meter stands out due to its high-precision dual-channel design and extensive waveform options. It features a large-scale FPGA and high-speed microcontroller, ensuring stability with an internal crystal oscillator. The device supports various waveforms like sine, square, triangle, and user-defined signals, with independent channel configurations and sweep functions. Its sampling rate of 200MSa/s and 14-bit resolution enable accurate, stable outputs up to 30MHz. Measurement functions include frequency, period, and pulse width analysis, making it an excellent tool for teaching, research, and testing in electronic engineering labs.
- Number of Channels:Dual-channel
- Maximum Frequency Range:30MHz
- Sampling Rate:200MSa/s
- Waveform Storage / Arbitrary Waveforms:60 waveform files, 2048 points each
- Modulation Capabilities:AM, FM, PM, FSK, PWM, burst
- Display Type:4-inch TFT LCD
- Additional Feature:High-precision voltage control
- Additional Feature:Fast square wave rise times
- Additional Feature:External analog modulation
UNI-T UTG962E Dual-Channel Waveform Generator
The UNI-T UTG962E Dual-Channel Waveform Generator stands out as an excellent choice for educational settings due to its versatile dual-channel design and precise waveform capabilities. It supports various output waveforms like sine, square, pulse, ramp, noise, DC, and arbitrary signals, making it adaptable for different experiments. Using DDS technology, it offers accurate frequency generation with a sampling rate of 200MSa/s and 14-bit resolution. Its high-precision frequency counter covers from 1μHz to 60MHz. Compact and lightweight, it’s perfect for classrooms, hobbyists, and small labs, providing reliable signal testing and versatile learning opportunities.
- Number of Channels:Dual-channel
- Maximum Frequency Range:Up to 60MHz
- Sampling Rate:Not specified (programmable, high precision)
- Waveform Storage / Arbitrary Waveforms:24 waveform groups, unspecified points
- Modulation Capabilities:Supports modulation, external analog control
- Display Type:No display specified
- Additional Feature:Built-in high-accuracy counter
- Additional Feature:Compact portable design
- Additional Feature:Supports frequency scanning
OWON XDG2030 2-Channel 30MHz Signal Generator
If you’re looking for a signal generator designed to meet both educational and research needs, the OWON XDG2030 stands out with its dual-channel 30MHz output and high sampling rate. It offers 14-bit vertical resolution and a waveform length of 10 million points, enabling precise and complex waveform creation. The 7-inch TFT LCD provides clear visualization, while compatibility with SCPI and LabVIEW simplifies integration into existing setups. Its portability, with compact dimensions and lightweight design, makes it ideal for labs and classrooms. Supporting a library of 150 preset arbitrary waveforms and advanced modulation modes, the XDG2030 delivers versatile performance for various testing and learning applications.
- Number of Channels:Two channels
- Maximum Frequency Range:30MHz
- Sampling Rate:200MSa/s
- Waveform Storage / Arbitrary Waveforms:60 waveform files, 2048 points
- Modulation Capabilities:Multiple modulation modes (implied)
- Display Type:7-inch TFT LCD
- Additional Feature:Supports SCPI and LabVIEW
- Additional Feature:150 preset arbitrary waveforms
- Additional Feature:High-resolution waveform visualization
GSC VFWAVGEN Variable Frequency Wave Generator
Looking for a waveform generator that’s perfect for physics classrooms and hands-on demonstrations? The GSC VFWAVGEN Variable Frequency Wave Generator is an excellent choice. It converts standard wall power into oscillating signals, making it easy to explore wave behavior. You can adjust frequencies from 1 to 400 Hz with 1 Hz accuracy or go up to 4000 Hz with 10 Hz steps. Its fine-tuned amplitude control helps tailor wave demonstrations precisely. Designed specifically for educational settings, it pairs well with other tools like vibration generators and physical materials. This device makes visualizing and understanding wave dynamics straightforward and engaging for students.
- Number of Channels:Variable (implied dual or more)
- Maximum Frequency Range:400Hz – 4000Hz (demo frequency range)
- Sampling Rate:250MSa/s
- Waveform Storage / Arbitrary Waveforms:Supports custom sequences, firmware updates
- Modulation Capabilities:Voltage-controlled modulation, sweeping
- Display Type:No display specified
- Additional Feature:Adjustable frequency and amplitude
- Additional Feature:Designed for educational use
- Additional Feature:Compatible with vibration tools

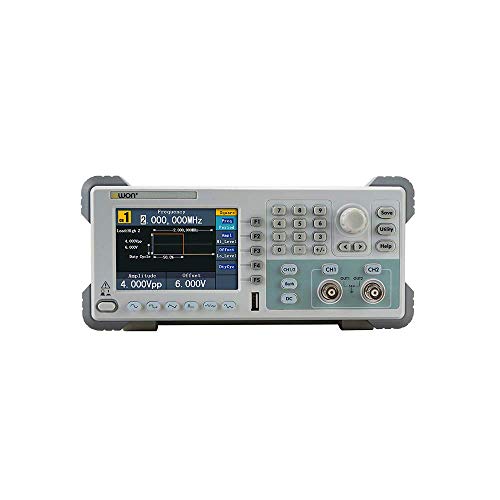

OWON AG2062F 2 Channel Arbitrary Waveform Generator with Counter
For educators seeking versatile signal generation combined with precise measurement, the OWON AG2062F stands out thanks to its built-in high-accuracy frequency counter supporting ranges from 100mHz to 200MHz. This device offers two channels for simultaneous waveform output, supporting five basic waveforms and 45 built-in arbitrary options. It features a 250MS/s sample rate, 14-bit vertical resolution, and waveform lengths up to 1 million points, ensuring detailed and accurate signals. The large 4-inch TFT display makes operation straightforward, while advanced modulation modes like AM, FM, and PWM enhance testing capabilities. Its SCPI support also simplifies integration into automated test setups.
- Number of Channels:Two channels
- Maximum Frequency Range:60MHz
- Sampling Rate:500MSa/s
- Waveform Storage / Arbitrary Waveforms:45 built-in, 1 million points
- Modulation Capabilities:AM, FM, PM, FSK, ASK, PWM
- Display Type:4-inch TFT LCD
- Additional Feature:Supports 5 basic and 45 arbitrary waveforms
- Additional Feature:14-bit vertical resolution
- Additional Feature:1 million point waveform length
UNI T UTG932E Function Generator with Dual Channels
The UNI-T UTG932E Function Generator with Dual Channels stands out as an excellent choice for educational settings due to its precise frequency control and versatile waveform options. It offers a 30MHz bandwidth, dual channels, and arbitrary waveform capabilities supported by a 200MSa/s sampling rate with 14-bit resolution. Its DDS technology ensures ultra-accurate frequency output, from 1μHz to 30MHz, with a resolution of just 1μHz. The device supports various modulations, including AM, FM, and FSK, making it suitable for diverse testing and learning scenarios. Its compact, budget-friendly design makes it accessible for students, hobbyists, and small labs.
- Number of Channels:Dual-channel
- Maximum Frequency Range:30MHz
- Sampling Rate:200MSa/s
- Waveform Storage / Arbitrary Waveforms:24 waveform groups, unspecified points
- Modulation Capabilities:AM, FM, PM, FSK, Line, Log
- Display Type:7-inch TFT LCD
- Additional Feature:24 non-volatile waveform groups
- Additional Feature:Comprehensive modulation options
- Additional Feature:Six-digit frequency counter
Factors to Consider When Choosing an Arbitrary Waveform Generator for Engineering Classrooms
When selecting an arbitrary waveform generator for classrooms, I focus on several key factors. These include the variety and quality of waveforms it can produce, how user-friendly the interface is, and its frequency range and resolution. Additionally, I consider connectivity options, software support, budget, and portability to guarantee it meets both teaching needs and practical constraints.
Waveform Variety and Quality
Choosing an arbitrary waveform generator for engineering classrooms hinges on its ability to produce a wide variety of accurate and high-quality waveforms. I look for devices that support common signals like sine, square, triangle, ramp, and noise, as well as user-defined options for advanced experiments. The waveform fidelity depends on the vertical resolution; 14-bit resolution offers more precise, detailed signals essential for realistic testing. A high sampling rate, such as 300 MSa/s, ensures accurate reproduction of fast-changing and complex signals. Amplitude stability and flatness across the output waveform are vital for maintaining signal integrity during experiments. Additionally, the capacity to store and reproduce multiple high-quality waveforms adds versatility, allowing students to simulate real-world scenarios effectively.
User Interface Intuitiveness
An intuitive user interface is essential for ensuring students can operate an arbitrary waveform generator efficiently without needing extensive training. Clear menus and logical navigation allow students to quickly set parameters and switch between waveform types, making the learning process smoother. Touchscreen displays or well-organized control panels enhance ease of use and help students familiarize themselves with the instrument faster. Visual feedback, such as waveform previews shown on the screen, provides immediate insight into signal modifications, aiding comprehension. User-friendly interfaces also reduce operational errors, allowing students to focus more on understanding waveforms and signal concepts rather than struggling with complex controls. Ultimately, a well-designed interface encourages independent exploration and confidence, making it an indispensable feature in an educational setting.
Frequency Range and Resolution
The frequency range and resolution of an arbitrary waveform generator directly impact its ability to produce precise signals for various educational experiments. A wider frequency range allows me to explore different wave phenomena, from audio signals to RF applications, making the device more versatile. High resolution in frequency, measured in microhertz or millihertz, enables detailed tuning and accurate waveform analysis, especially when demonstrating subtle spectral differences or frequency-dependent effects. If the generator lacks sufficient range or resolution, it limits the scope of experiments and the accuracy of signals generated. Thus, selecting a device with a broad frequency range and high resolution ensures I can cover a wide array of experiments with precise control, enhancing the educational value and practical utility of the waveform generator in the classroom.
Connectivity and Software Support
Connectivity and software support are crucial factors because they determine how easily I can integrate the waveform generator into my lab setup and streamline my workflow. I look for models with USB, LAN, or SCPI interfaces to guarantee seamless connection with computers and automation systems. Software control via Windows, Linux, or proprietary platforms is essential for effortless waveform editing and data management. Compatibility with common data formats like WAV, CSV, or binary files simplifies importing and exporting custom waveforms. I also check for dedicated software or firmware updates that enhance features and fix bugs, guaranteeing long-term usability. Additionally, remote control capabilities via mobile apps or network connections give me flexibility in classroom environments, making the generator more versatile and user-friendly for both teaching and research purposes.
Budget and Portability
When selecting an arbitrary waveform generator for classroom use, budget and portability often go hand in hand. Portable models usually weigh less than 3 pounds, making them easy to carry between classrooms or labs. Budget-friendly options tend to have lower maximum frequencies, such as 20 MHz or less, but still deliver essential waveform features for teaching purposes. These compact devices often feature smaller screens and fewer advanced controls but are adequate for basic waveform visualization and manipulation. Cost-effective generators may lack sophisticated modulation or extensive waveform storage, prioritizing core signal functions. Choosing a portable, budget-conscious generator allows students to experiment with waveform creation without the need for costly laboratory equipment, making it an accessible and practical solution for educational settings.
Frequently Asked Questions
How Do Waveform Generators Support Advanced Engineering Curriculum Requirements?
Waveform generators support advanced engineering curriculum requirements by providing students with hands-on experience in creating complex signals essential for modern applications. I use them to simulate real-world scenarios, analyze signal behavior, and develop troubleshooting skills. Their versatility allows me to explore various waveforms, frequencies, and modulation techniques, making learning interactive and practical. This hands-on approach deepens understanding and prepares students for real engineering challenges.
What Safety Features Are Included in Modern Waveform Generators?
Modern waveform generators prioritize safety with features like overvoltage protection, ensuring I’m shielded from unexpected surges. They also include short-circuit protection, preventing damage or accidents during use. Additionally, many have isolated outputs to eliminate ground loops, and some incorporate automatic shutdowns if faults occur. These safety measures give me confidence to experiment and learn without risking harm or equipment damage, making them essential tools in any engineering classroom.
How Do User Interfaces Impact Student Learning Efficiency?
User interfaces greatly impact my learning efficiency by making complex waveform adjustments intuitive and quick. When interfaces are clear, with touchscreens or well-organized controls, I can focus more on understanding concepts rather than struggling with navigation. Good design minimizes errors and saves time, allowing me to experiment more confidently. Ultimately, a user-friendly interface helps me grasp waveform behaviors faster and enhances my overall classroom experience.
Can Waveform Generators Simulate Complex Real-World Signal Scenarios?
Yes, waveform generators can definitely simulate complex real-world signal scenarios. I’ve used advanced models that let me craft intricate waveforms, including noise, modulations, and mixed signals, which mirror real-world conditions. This capability helps students understand how signals behave in practical applications, making the learning experience more realistic and engaging. It’s a powerful tool for preparing students for real engineering challenges by replicating actual signal environments accurately.
What Are the Maintenance Considerations for Classroom Waveform Generators?
Think of a waveform generator as a musical instrument that needs tuning and care. I check connections regularly, keep firmware updated, and clean the device to prevent dust buildup. Calibration is essential to guarantee accuracy, so I schedule routine calibrations. Additionally, I handle cables gently and store equipment properly. These steps keep the generator in tune, reliable, and ready to produce perfect signals for teaching and experimentation.
Conclusion
In closing, choosing the perfect waveform generator depends on your specific needs and budget. By balancing budget-friendly basics with more advanced options, you can confidently craft competent, creative, and clever circuits. Remember, thoughtful selection transforms teaching tools into terrific teaching triumphs. So, step confidently, consider vital features, and select the standout solution that will serve your classroom’s needs now and in the future. Happy hunting!
